6-7.2GHz 4W Drone Extender
Description
Drone/Wifi Signal Extender
- 2.5dB ultra-low noise
- 7V to 36V operating input range
- Working with certified WIFI 5/6/7
- Simply plug and play, no software is required
- 80X the power, improving the link quality and coverage of certified WLAN devices
Parameters
| Items | Specifications |
| Frequency Range | 6000-7200MHz |
| Operating Voltage | 7-36V |
| Receiving Gain | 14dB±1 |
| Transmission Gain | 20dB±1 |
| Max Output Power (P1dB) | 36dBm (4W) |
| Input Trigger Power | Min: 3dBm / Max: 20dBm |
| EVM | 3% @28dBm WIFI7 54Mbps OFDM 64QAM BW 20MHz |
| Noise Figure | ＜2.5dB |
| Current Supply | 485mA @Pout 28dBm 12V |
| TX/RX Switch Time Delay | ＜1 us |
| LED Indicator | Transmitter: Green; Receiver: Red |
| Operating Temperature | -30℃ ～ +70℃ |
| Storage Temperature | -40℃ ～ +150℃ |
| Operating Humidity | Up to 95% rel. humidity |

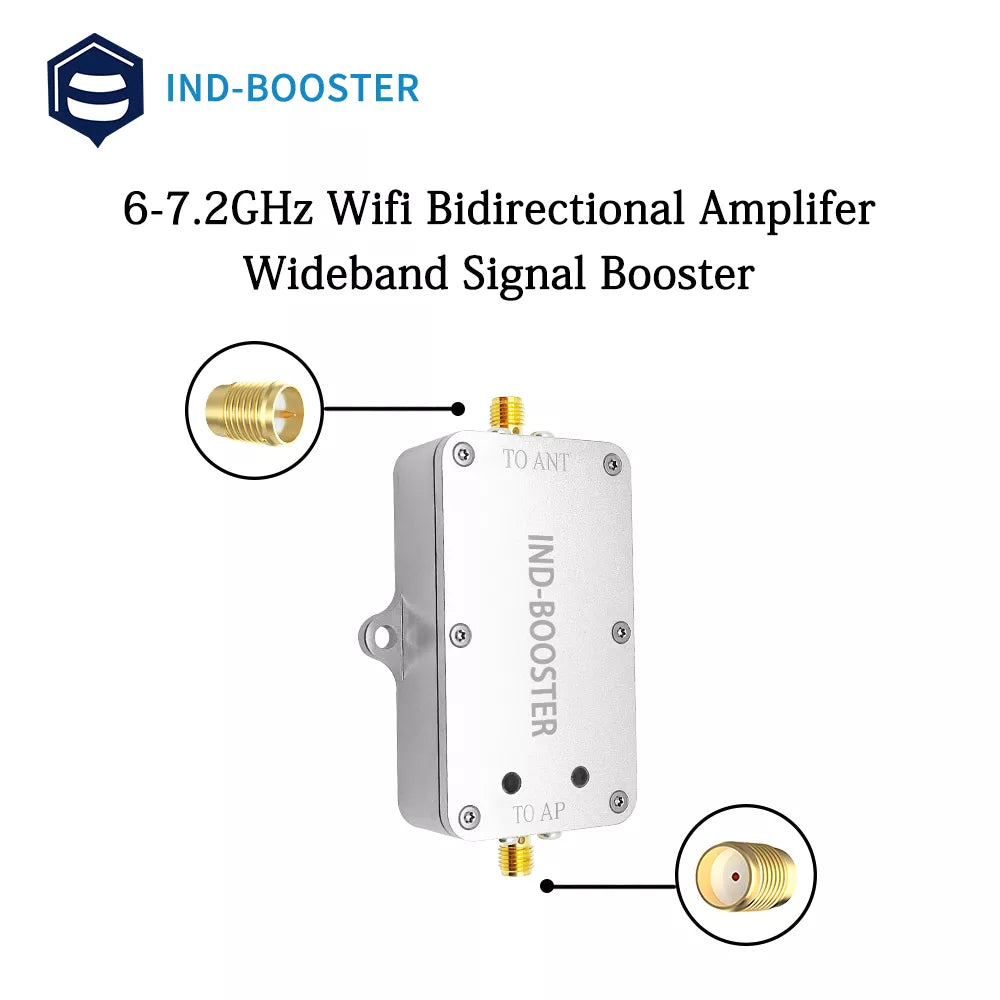

| RF Connector | Input: SMA-K; Output: RP-SMA-K |

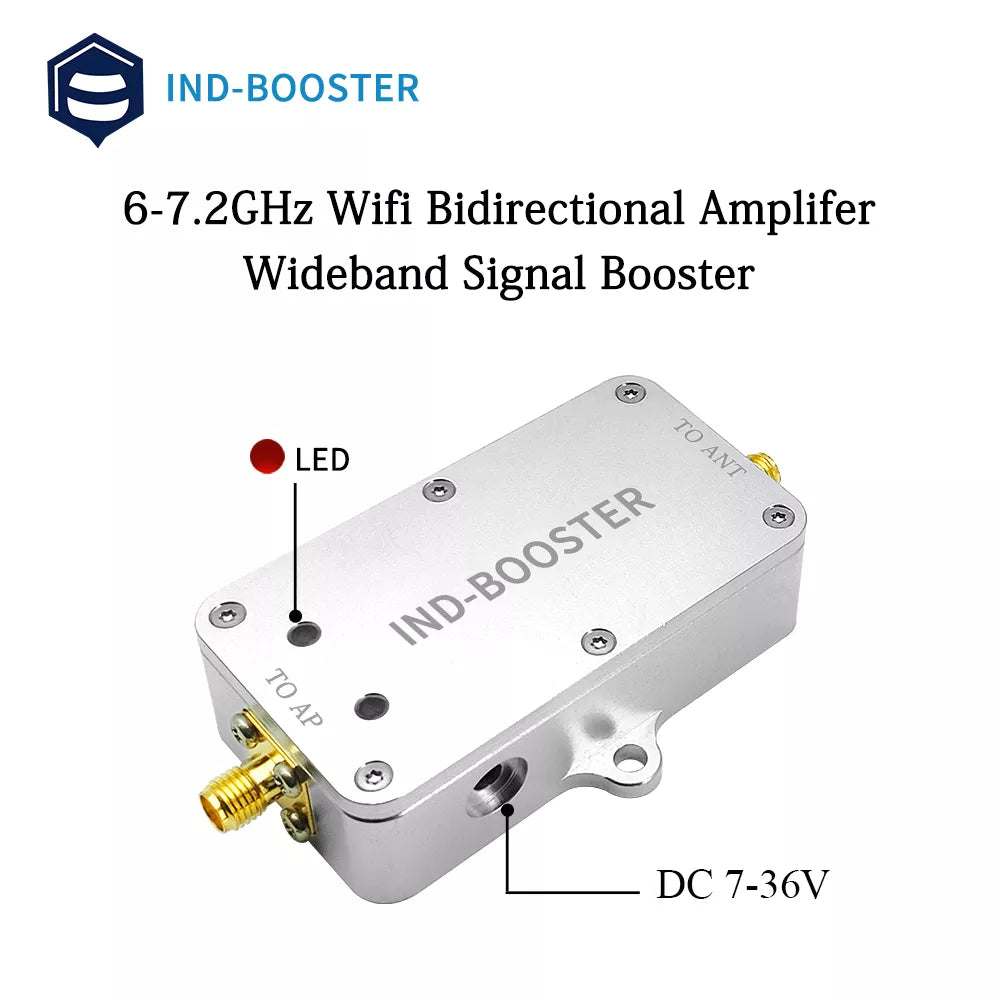

| Power Socket | 2.5*0.7mm DC (default) |

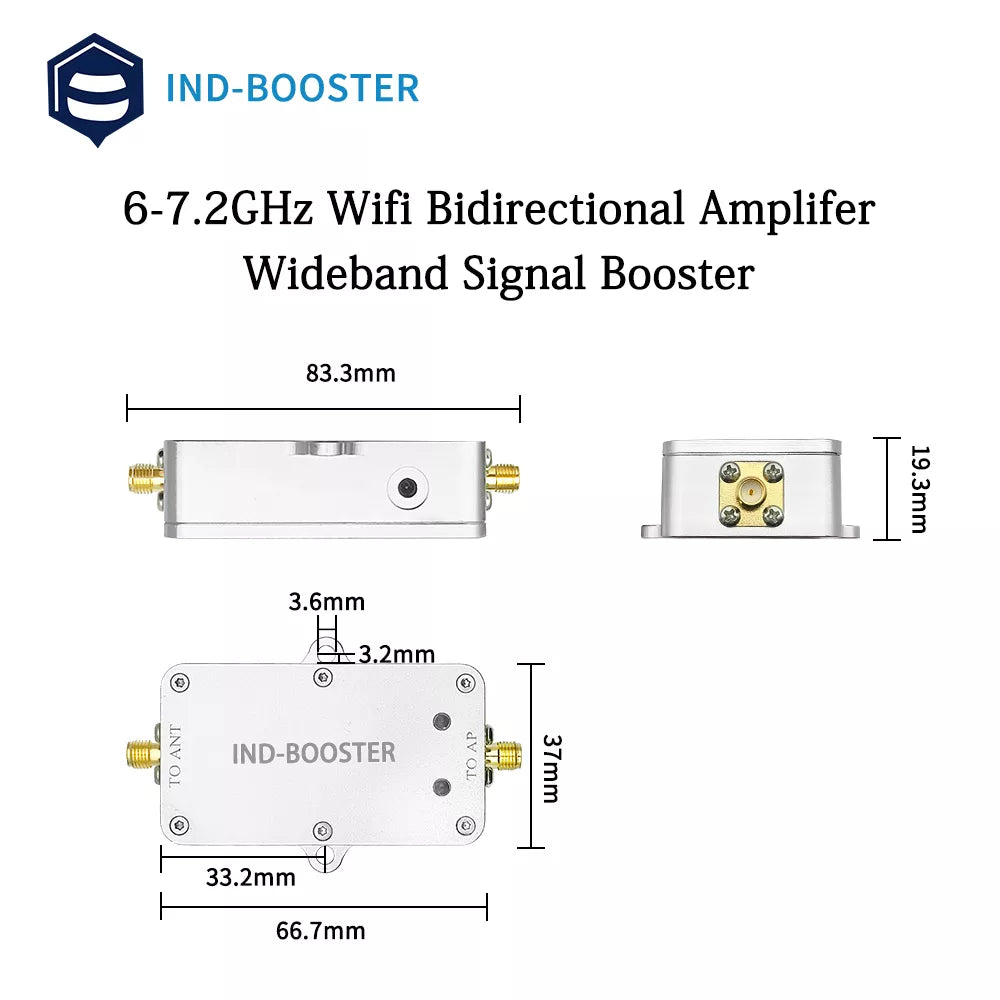

| Shell Size | 65*35*13 (mm) |
| Shell Material | Aluminum |
| Net Weight | 0.06Kg |
Attentions
- Use a 7-36 V power supply.
- Heat dissipation is recommended (e.g., adding a heat sink or radiator fan).
- Important: Antenna should be screwed on first, then plug in the power adapter, and finally connect the device.
- The output could reach 36dBm when input power is 16dBm or 17dBm (default gain is 20dB).
