Description
x6500-8000MHz 12dBi High Gain Directional Antenna panel antenna
6500-8000 MHz with SMA-Male connector head
Description

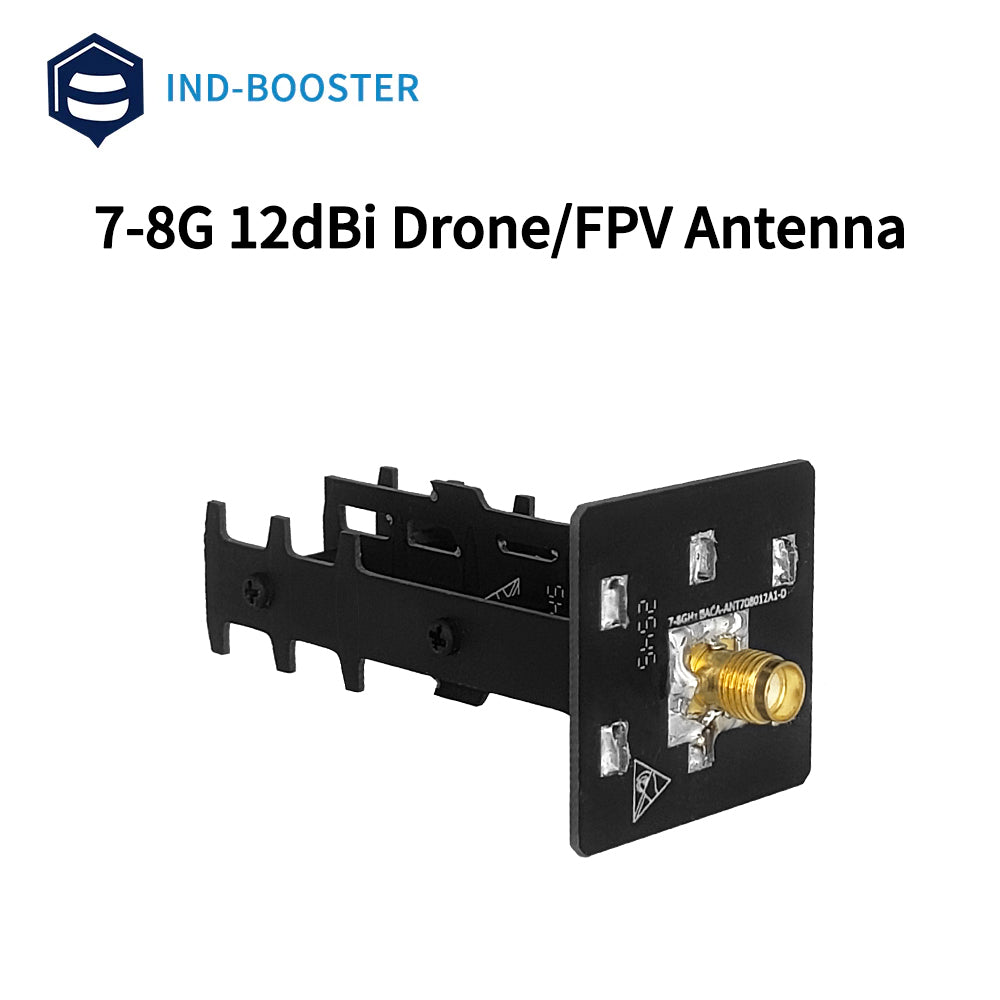

IND-Booster High Gain Directional Antenna
This high-gain directional antenna is made for the 6500-8000 MHz frequency range. It offers strong signal performance with a 12 dBi gain. The antenna is compact, making it easy to install even in small spaces.
It is ultra light and easy to equip with
This antenna supports long-range, point-to-point communication. It works well in drone systems, industrial setups, and wireless video or data links. The VSWR is <1.5:1, and the impedance is 50 Ohms, ensuring stable performance.
It can handle up to 30W input power.
The F/B ratio is >25dB, providing strong front signal with less back noise.
This antenna is ideal for use in:
-
Drone and UAV communication
-
Industrial automation and wifi(band within 2400-2500MHz)
-
Wireless surveillance
-
Long-range wireless links and blue teeth signal enhance
Choose IND-Booster for strong and reliable wireless signals in tough environments.

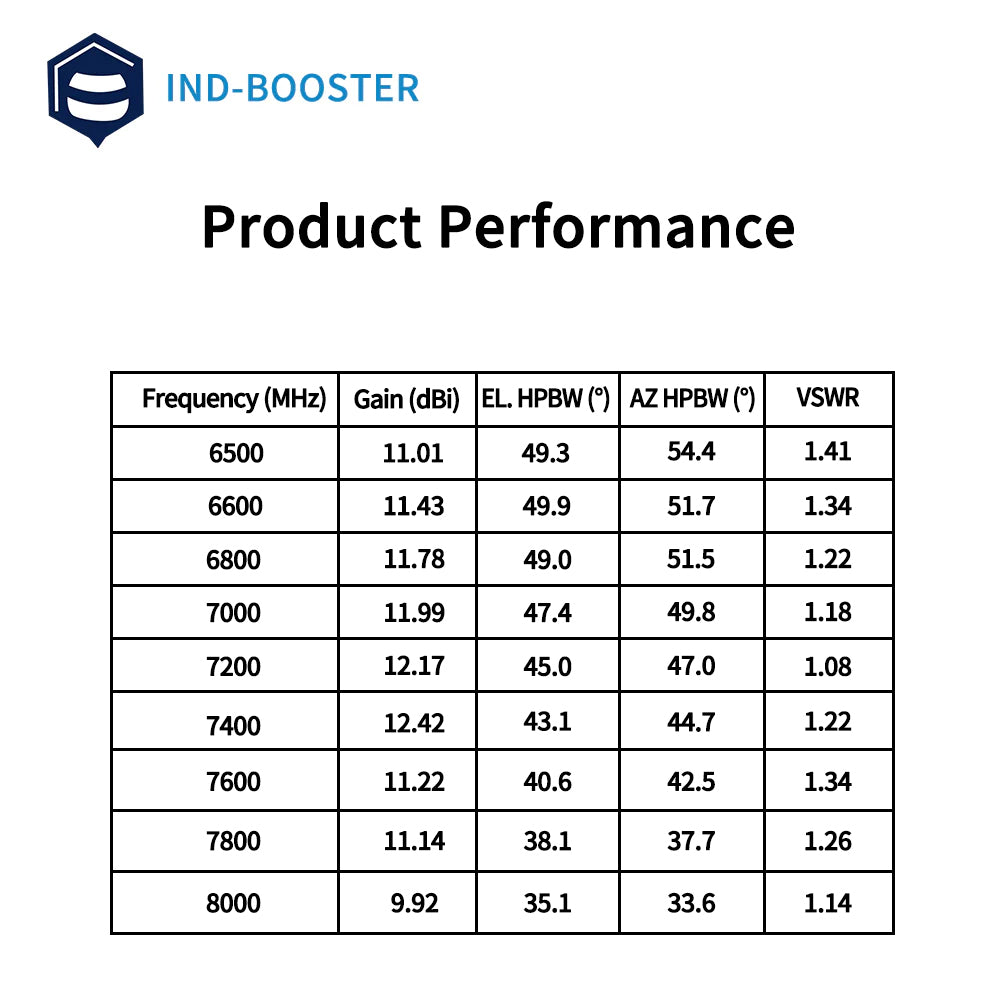

Technical data sheet
| 1 | Frequency Range | 6500-8000MHz |

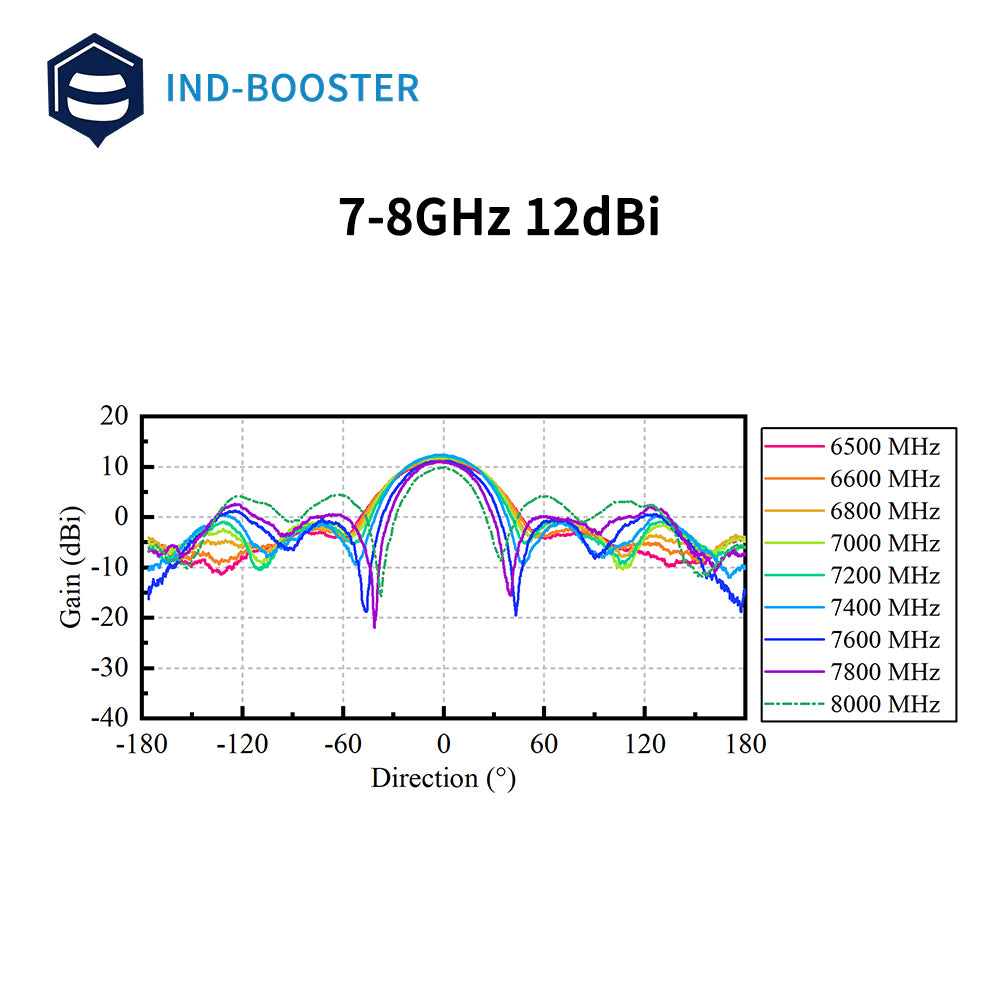

| 2 | Gain | 12dBi |

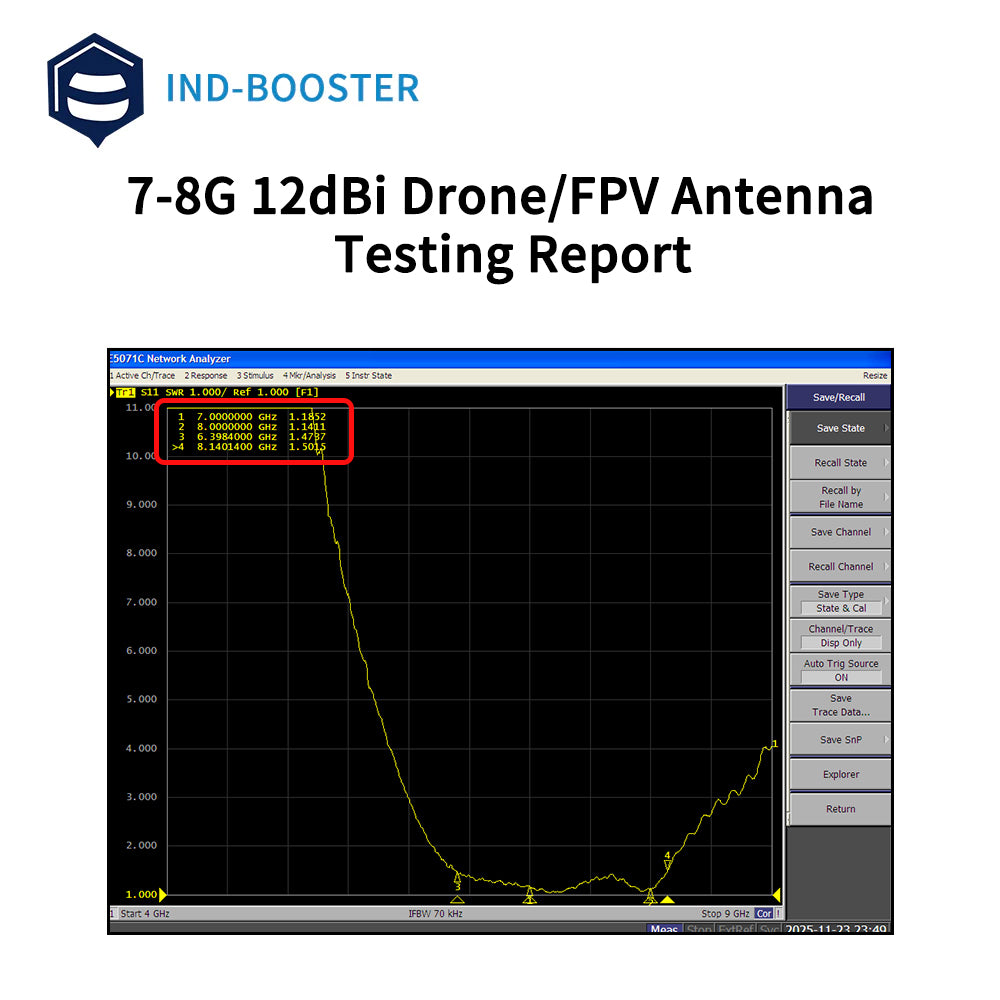

| 3 | VSWR | <1.5:1 |
| 4 | Polarization | Vertical |
| 5 | EL HPBW |
50° |
| 6 | AZ HPBW | 54° |
| 7 | Nominal Impedance | 50 Ohms |
| 8 | Max Input Power | 50w |
| 9 | Size | 55*40*30mm |
| 10 | Weight and connector | 7.8g with sma-female head |
Product detailed pictures
Head: Sma-Female
