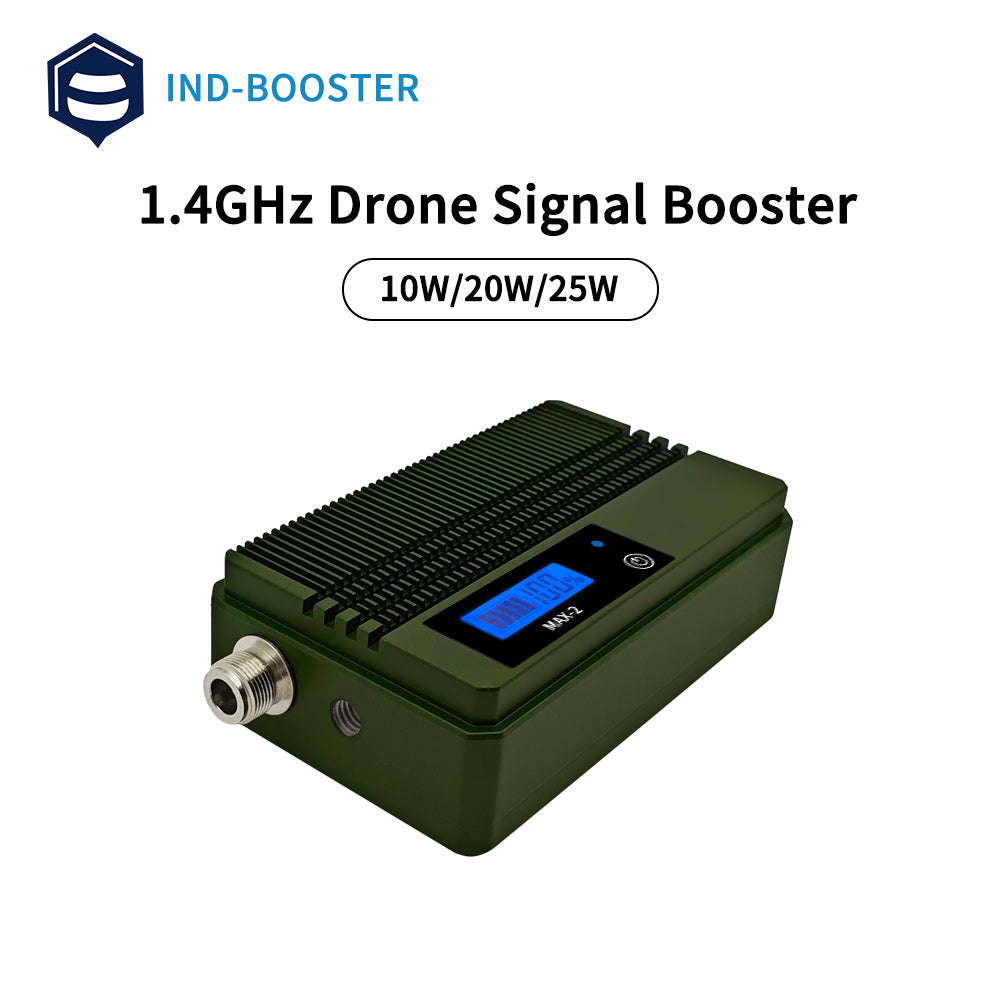

The IND-Booster MAX-2 is a robust, high-performance single-band portable drone booster designed for FPV (First-Person View) applications. Equipped with a 10W booster module and a 22.2V/5000mAh lithium battery, the MAX-2 delivers consistent, reliable performance with a runtime of over 5 hours, providing you with enhanced signal coverage for long-distance flight.
Built with an IP68 waterproof rating, the MAX-2 is engineered to withstand even the most demanding environments, from heavy rain to remote wilderness areas. Its compact design, weighing less than 1.5kg, ensures easy portability—perfect for users who need flexibility in mounting the booster on their arms, waist, or chest.
Whether you're a drone enthusiast or a professional operator, the IND-Booster MAX-2 provides a durable, efficient solution to enhance your drone's signal range and performance in challenging conditions.
|
Items |
Specifications |
|
Frequency Range |
1380-1440MHz |
|
Operating Voltage |
22.2V |
|
Receiving Gain |
18dB ±1 |
|
Transmission Gain |
18dB ±1 |
|
Max Output Power (P1dB) |
40dBm (10W) |
|
Input Trigger Power |
Min: 3dBm / Max: 22dBm |
|
EVM |
3% @ 34dBm (802.11g 54Mbps OFDM 64QAM BW 20MHz) |
|
Noise Figure |
< 2.5dB |
|
Current Supply |
1.0A @ Pout 34dBm, 22V |
|
TX/RX Switch Time Delay |
< 1 μs |
|
LED Indicator |
Transmitter: Green / Receiver: Red |
|
Operating Temperature |
-30℃ to +70℃ |
|
Storage Temperature |
-40℃ to +150℃ |
|
Operating Humidity |
Up to 95% RH |
|
RF Connector |
Input: N-F / Output: N-F |
|
Power Socket |
IP68 Aviation Plug |
|

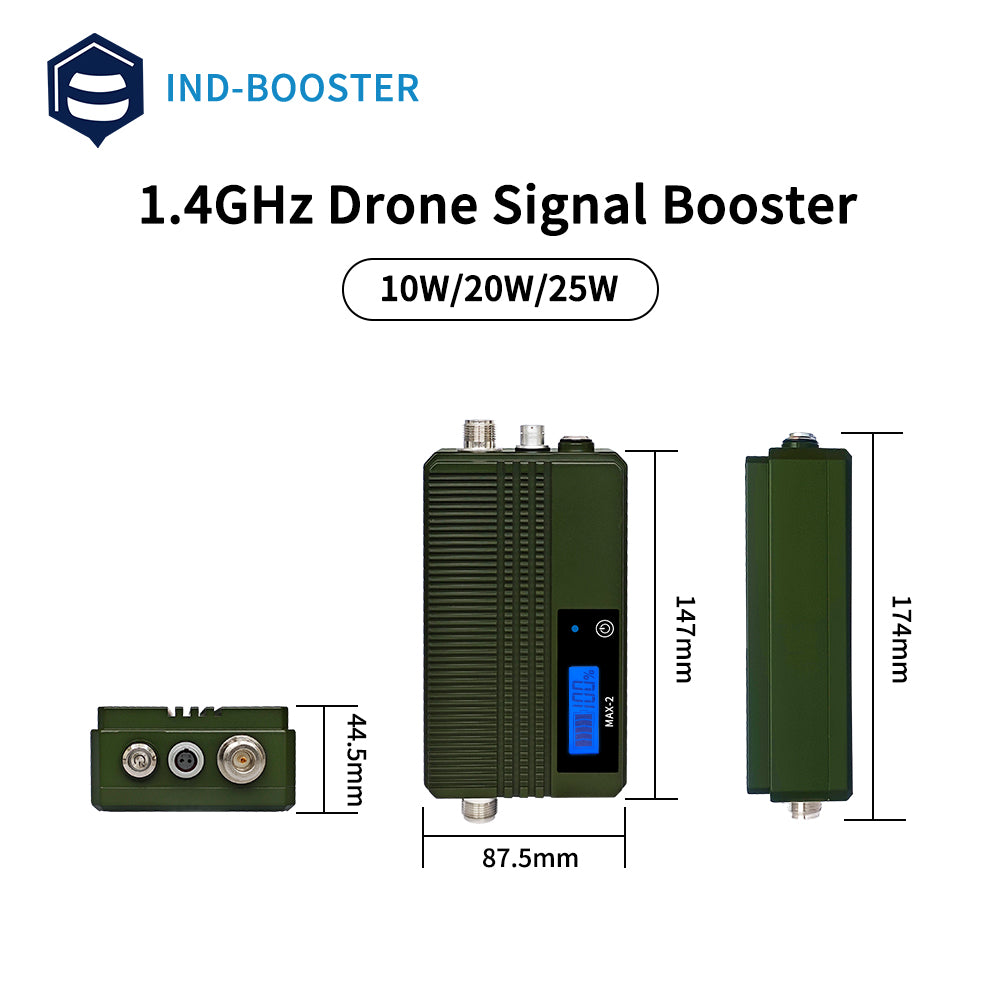

Shell Size |
174mm x 87.5mm x 44.5mm |
|
Shell Material |
Aluminum |
|
Net Weight |
1.5kg |
|
Waterproof Rating |
IP68 |
|
Battery Capacity Tester |
Yes |
|
Color |
Green |
It could be used with the same frequency antenna to booster the signal.
Such as panel antenna, yagi antenna and omnidirectional antenna.
Packing
1 PCS of MAX 2 device
1 PCS of charger
