3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN

3.3GHz high power signal sweep source RF module jammer module SMA type with GaN

$149.00
$149.00
Power: 10w
Subtotal: $149.00

Delivery & Returns

Enquiry

Collections: all. Drone Jammer Module. GAN Jammer Module.

3.3GHz high power signal sweep source RF module jammer module SMA type with GaN

3.3GHz high power signal sweep source RF module jammer module SMA type with GaN

$149.00
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN
3.3GHz high power signal sweep source RF module jammer module SMA type with GaN

3.3GHz high power signal sweep source RF module jammer module SMA type with GaN

$149.00
Power: 10w
Description

3.3GHz high power RF wireless anti drone FPV UAV blocking module with GaN

3200-3400MHz (Frequency can be customized with big amount)



Description

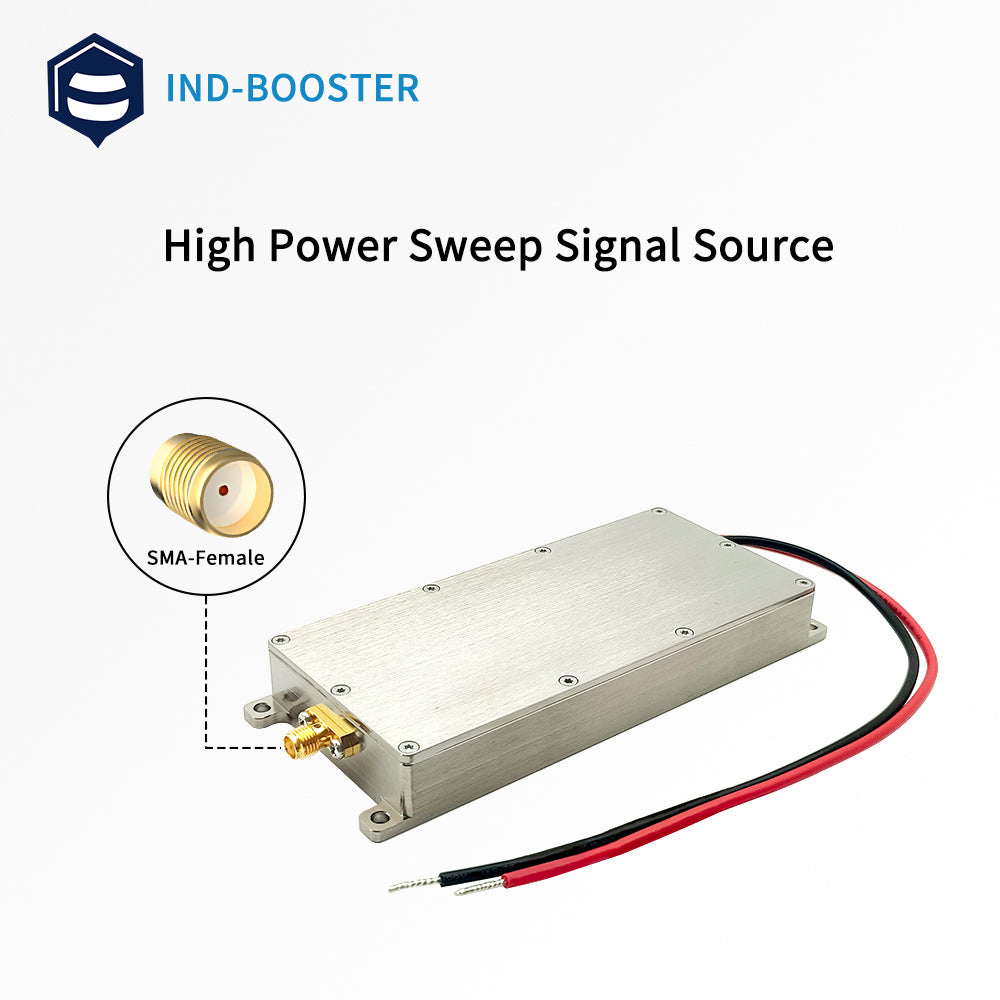

1 SMA female connector(could connect yagi, omnidirectional antenna)

2 Customizable frequency (for large amount)

3 High power with GaN chip(longer product life)

The frequency could be customizable with big amount.

Our company is also able to provide such frequency unidirectional amplifier.

Technical data sheet

Number Items Specifications(50watt one)
1 Frequency Range 3200-3400MHz
2 Operating Voltage 28V
3 Flatness ±0.5dB
4 Output Power 47dBm
5 Current 3.90A @28V, 47dBm
6 Efficiency 45%@47dBm
7 LED State Red
8 Operating Temperature -30℃～85℃
9 Storage Temperature -40℃～150℃
10 Operating Humidity ＜95%RH
11 RF PORT Output: SMA-F
12 Power Socket 15cm red/black wire
13 Shell Material Aluminum

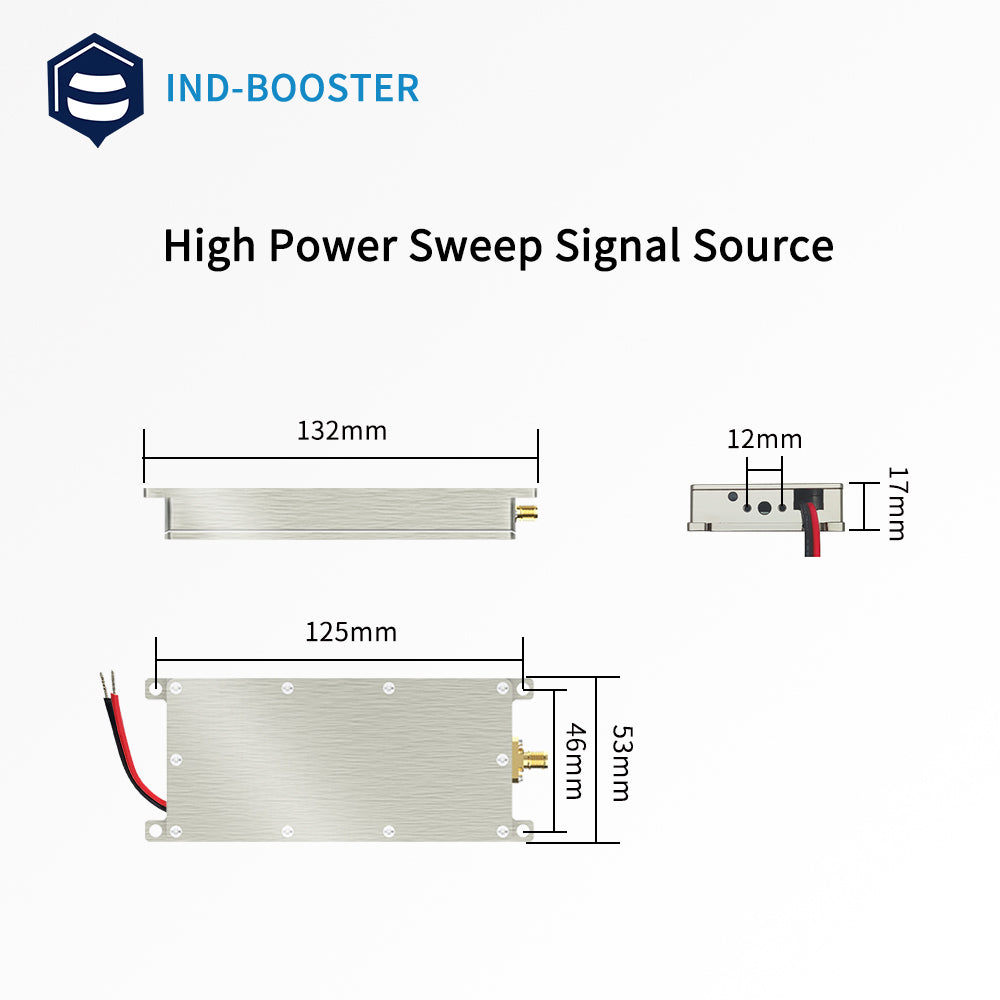

14 Shell Size 132*53*17mm
15 Net Weight 0.25Kg

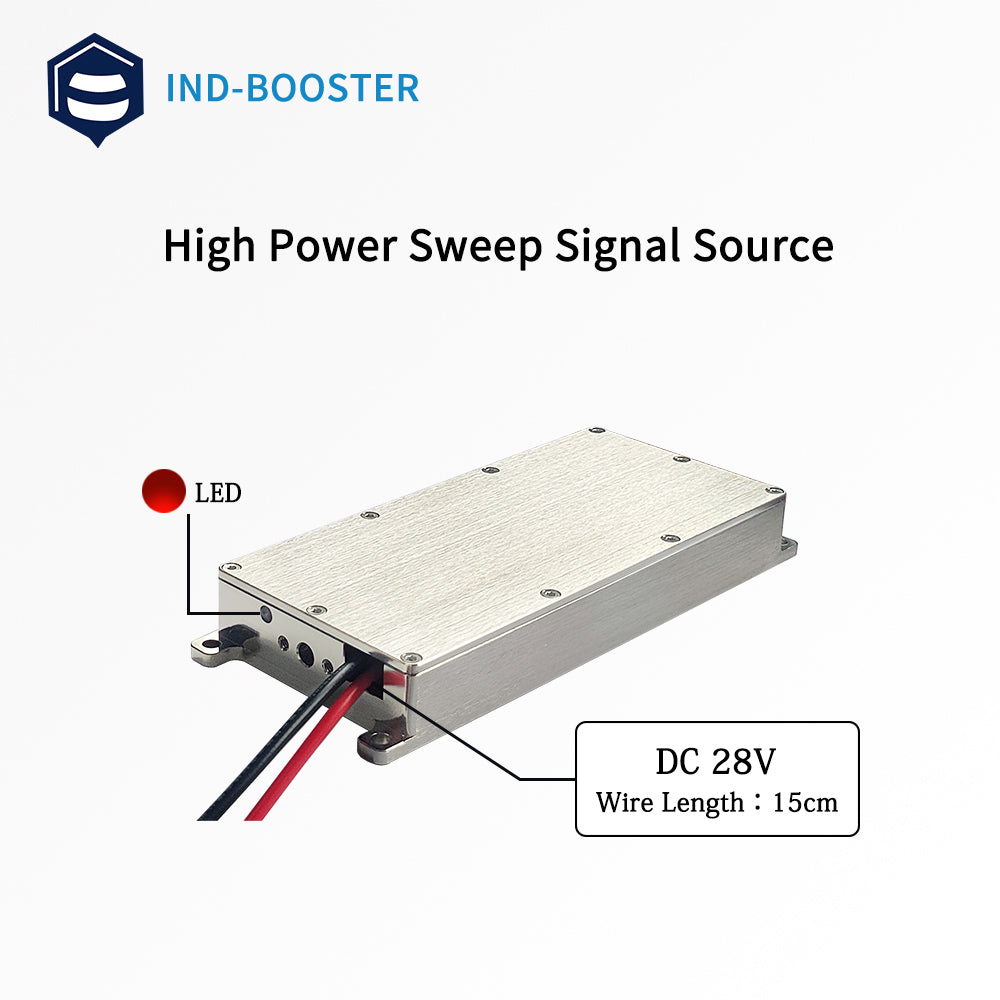

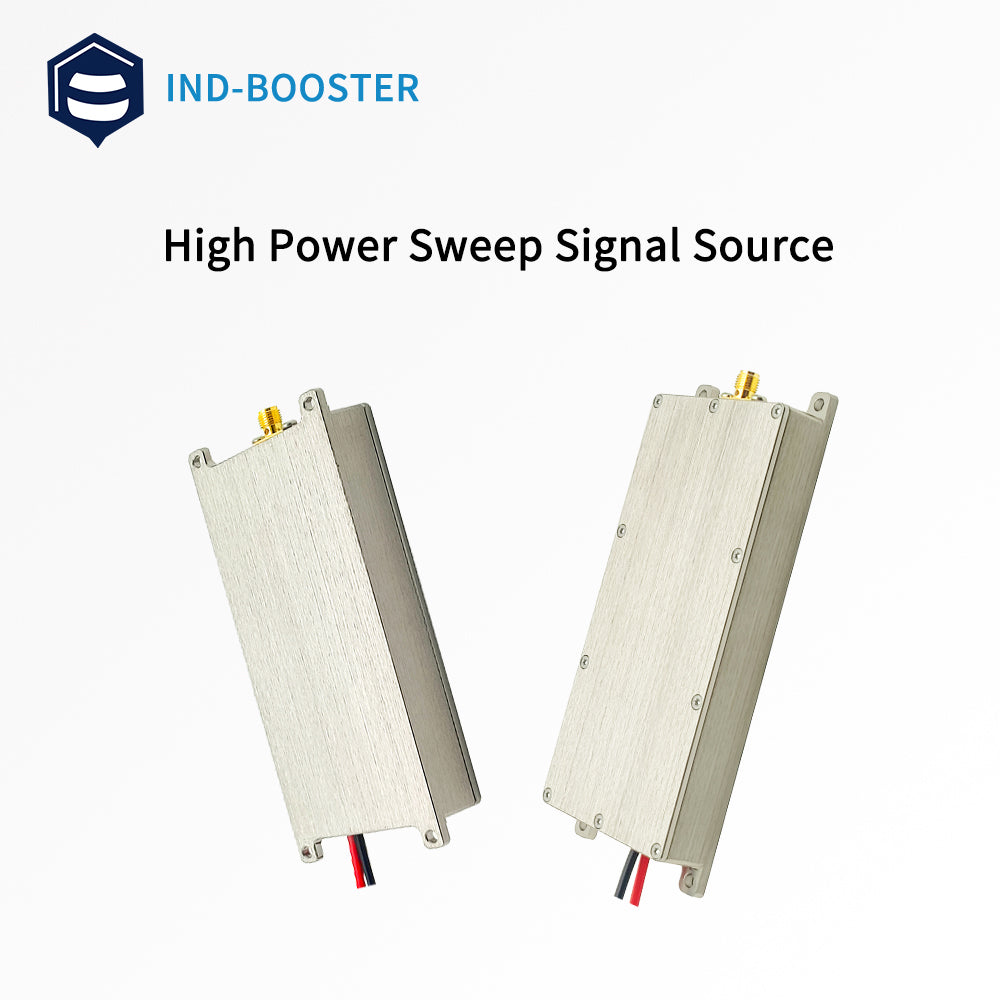

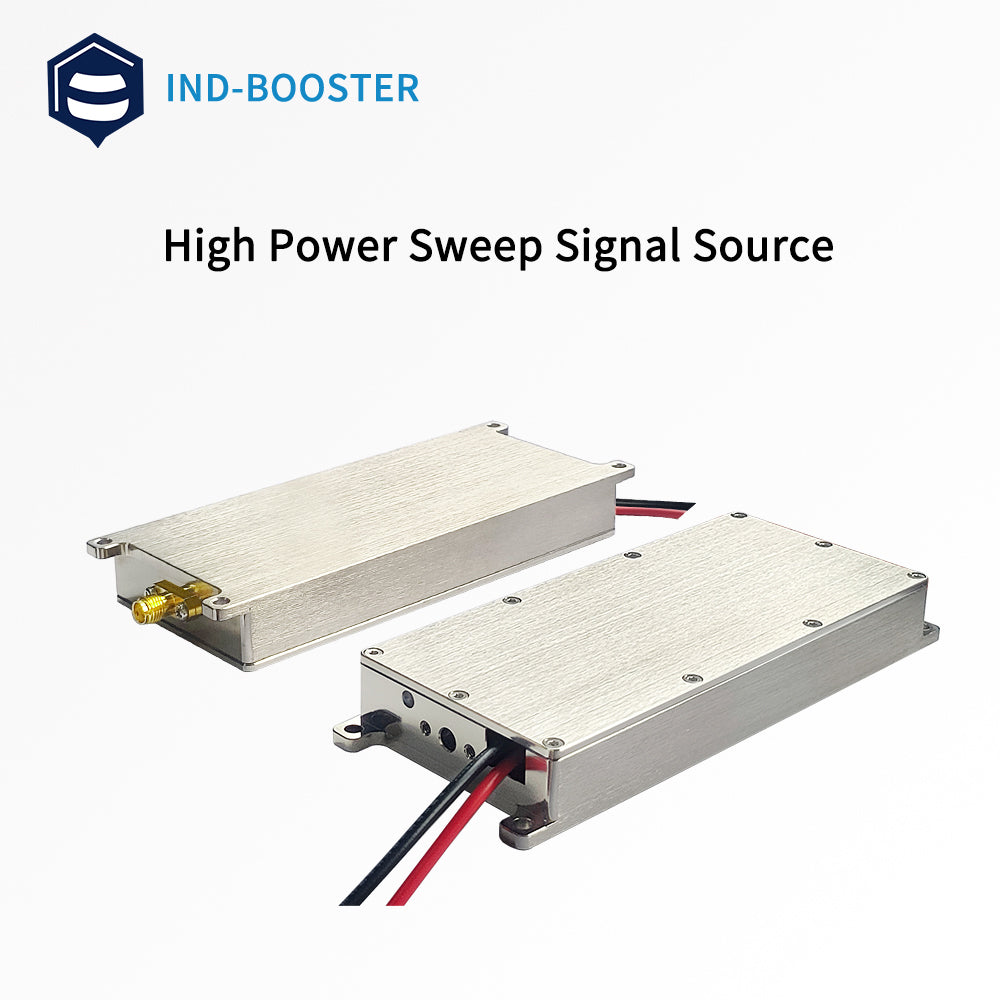

Product detailed pictures


Appendix

1 VCO is the signal source.

2 Efficient heat sinks and fans are needed when using.

3 It can be adapted to Yagi, flat panel antennas, and omnidirectional antennas.
