2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN

2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN

$75.00
$75.00
Power: 10w
Subtotal: $75.00

Delivery & Returns

Enquiry

Collections: all. Drone Jammer Module. GAN Jammer Module.

2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN

2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN

$75.00
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN
2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN

2.4GHz 2300-2500MHz high power signal sweep source RF module jammer module SMA type with GaN

$75.00
Power: 10w
Description
Description
x

2.4 GHz high power RF wireless anti drone FPV UAV blocking module with GaN

2300-2500MHz (Frequency can be customized with big amount)



Description

1 SMA female connector(could connect yagi, omnidirectional antenna)

2 Customizable frequency (for large amount)

3 High power with GaN chip(longer product life)

The frequency could be customizable with big amount.

Our company is also able to provide such frequency unidirectional amplifier.

Technical data sheet

Number Items Specifications(50watt one)
1 Frequency Range 2300-2500MHz
2 Operating Voltage 28V
3 Flatness ±0.5dB
4 Output Power 47dBm
5 Current 3.90A @28V, 47dBm
6 Efficiency 45%@47dBm
7 LED State Red
8 Operating Temperature -30℃～85℃
9 Storage Temperature -40℃～150℃
10 Operating Humidity ＜95%RH
11 RF PORT Output: SMA-F
12 Power Socket 15cm red/black wire
13 Shell Material Aluminum

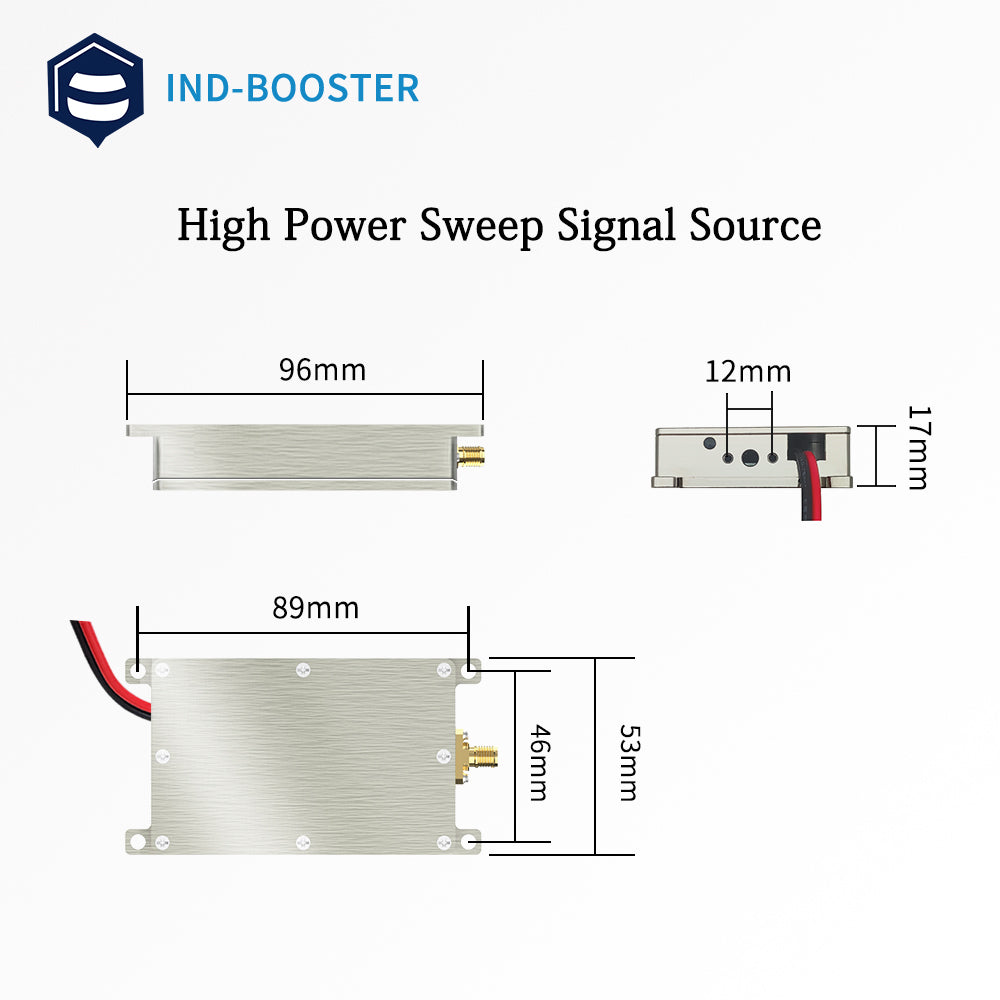

14 Shell Size 96*53*17mm
15 Net Weight 0.15Kg

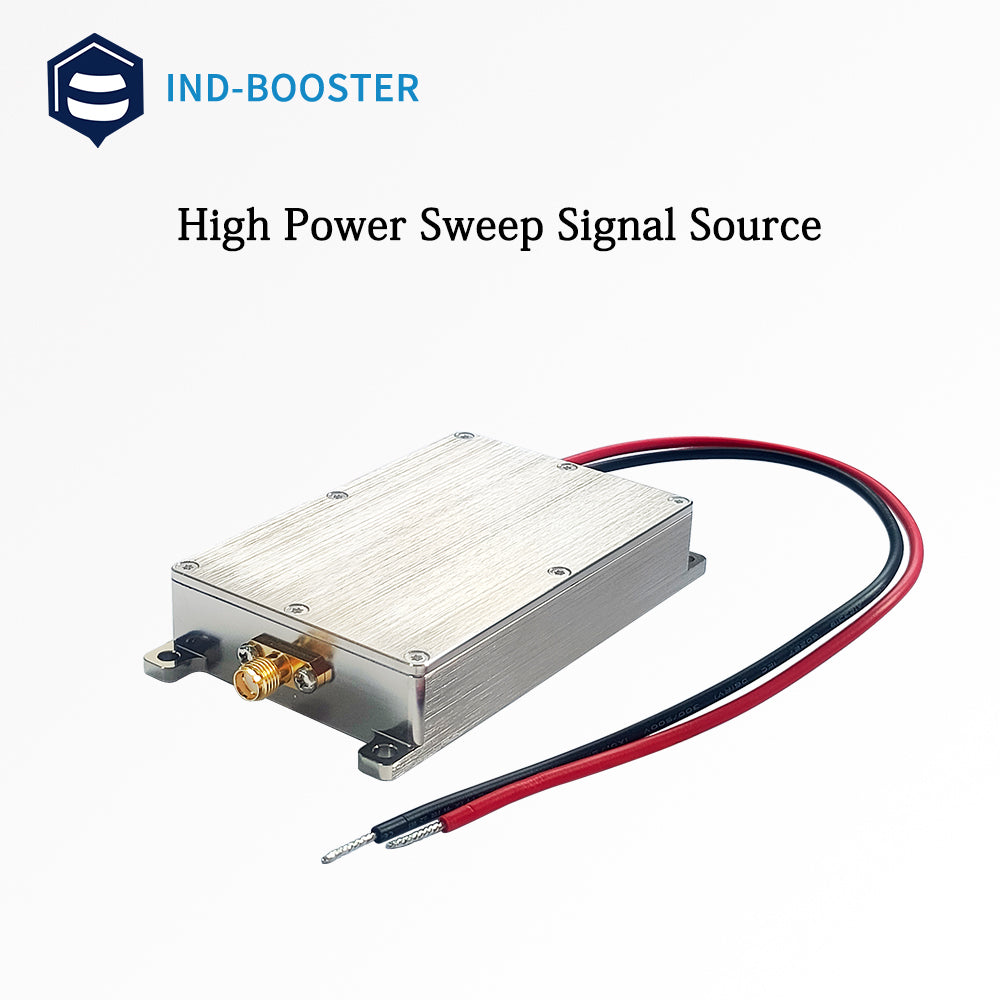

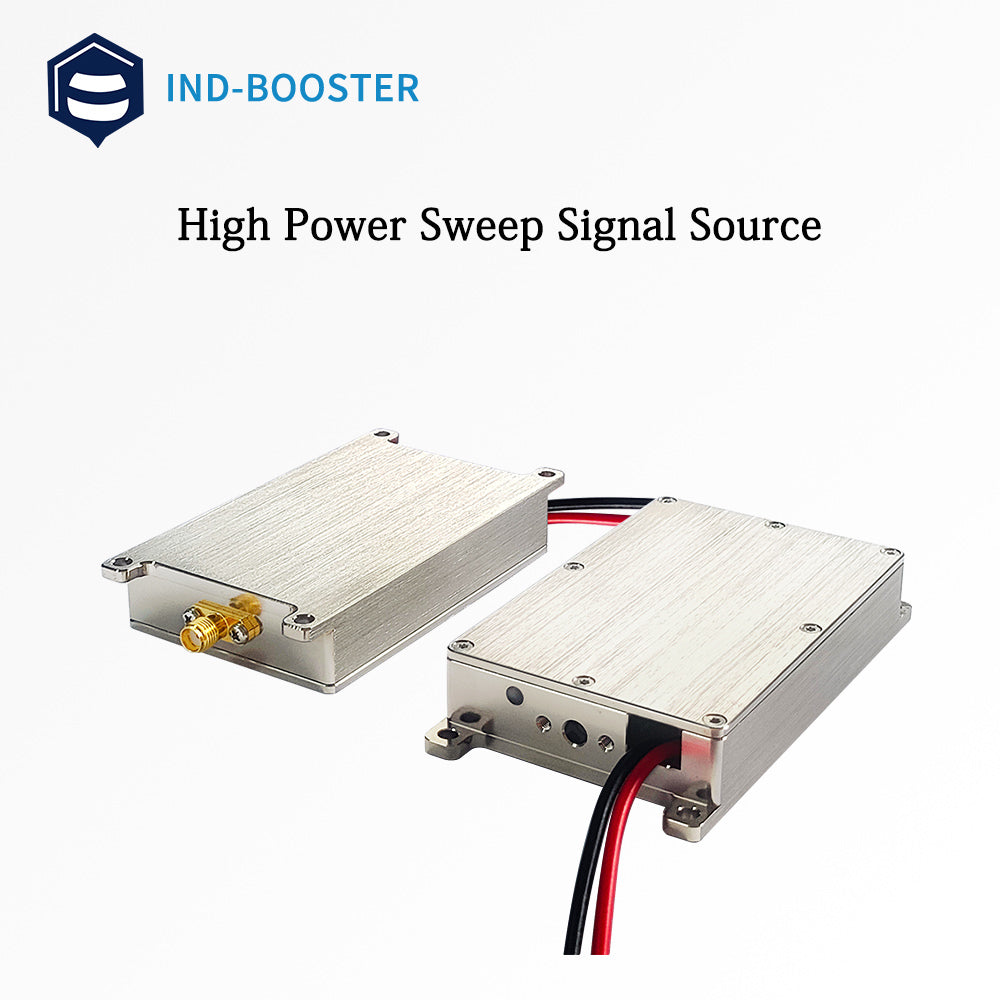

Product detailed pictures

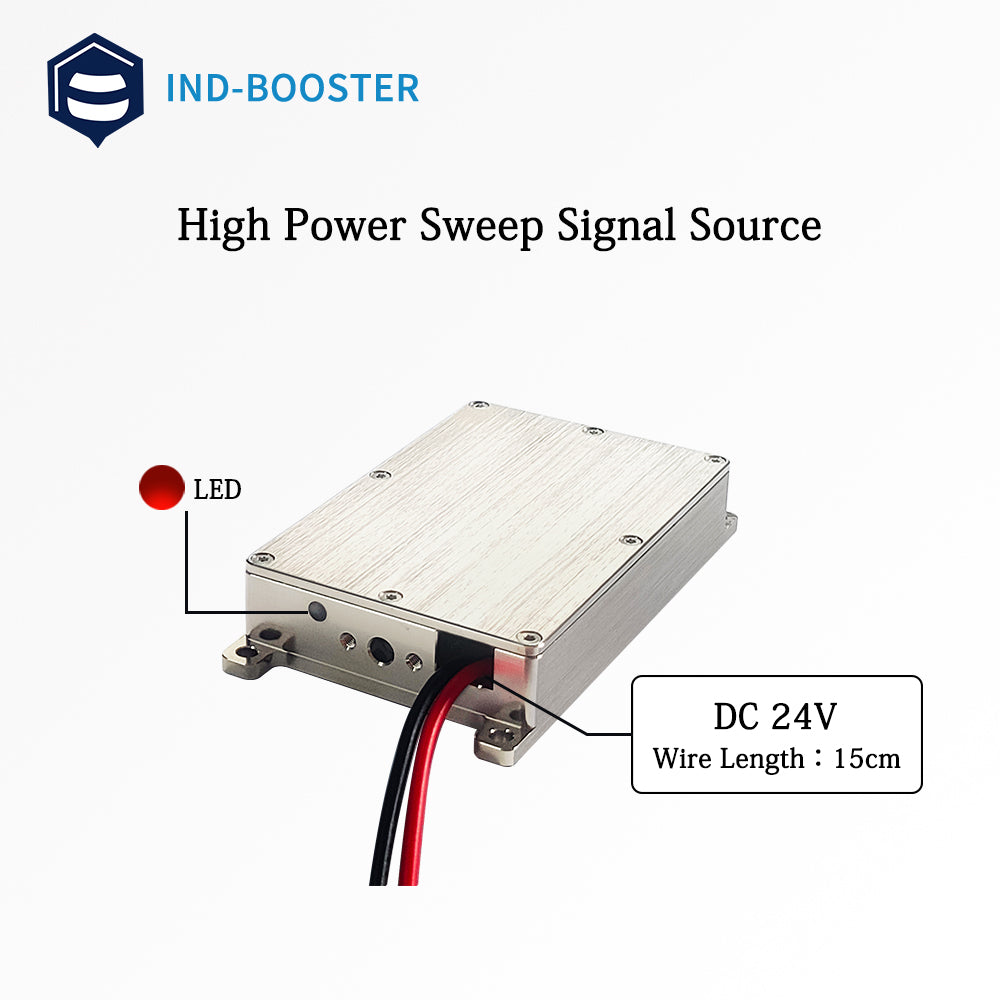

For this product, (10w and 20w should use 24V DC as power supply)

(40w and 50w version should use 28V DC as power supply)


High power signal blocking module available

(200-300MHz);(300-400MHz);(400-500MHz);

(500-600MHz);(600-700MHz);(700-800MHz);

(650-850MHz);(830-960MHz);(800-900MHz);

(900-1100MHz);(1100-1300MHz);(1300-1500MHz);

(1500-1700MHz);(2400-2600MHz);(3100-3300MHz);

(4900-5100MHz);(5150-5350MHz);(5750-5850MHz);

And there are some customized frequency.

Please feel free to inquiry for customized frequency



Appendix

1 VCO is the signal source.

2 Efficient heat sinks and fans are needed when using.

3 It can be adapted to Yagi, flat panel antennas, and omnidirectional antennas.
