Description

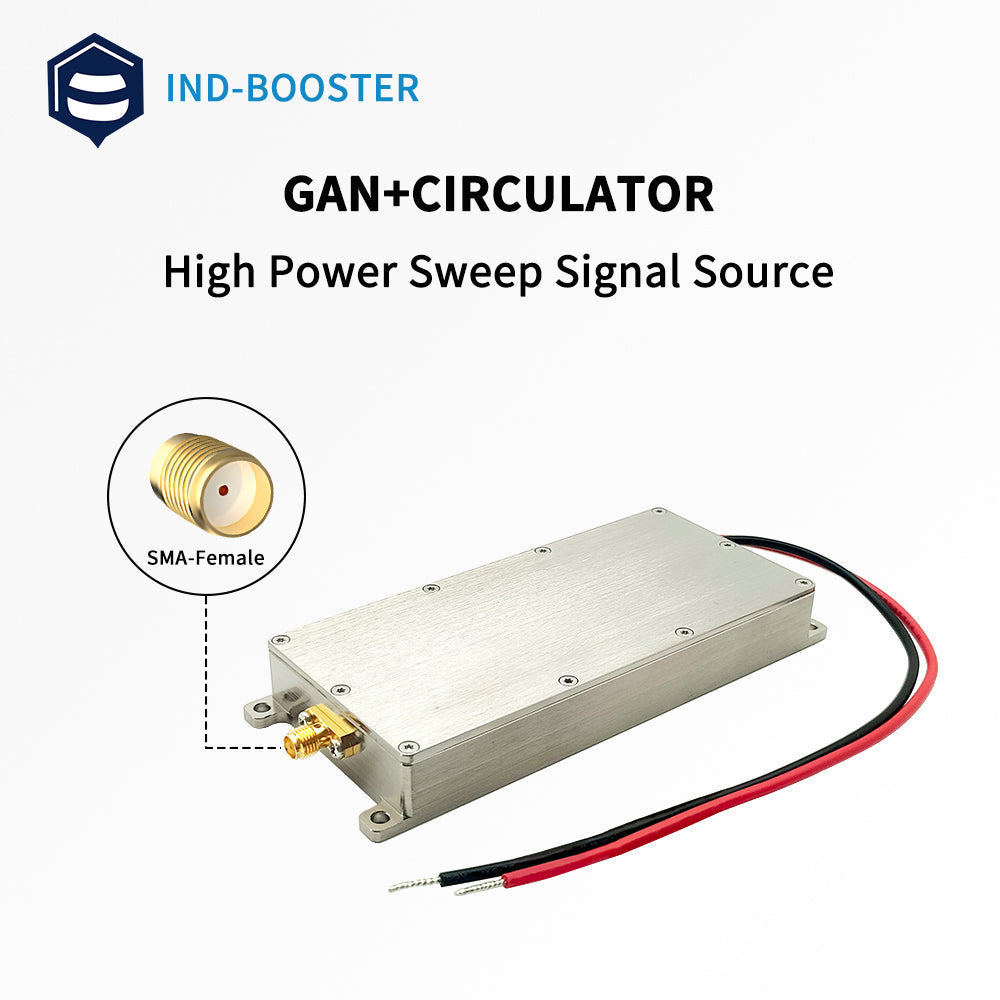

1.2GHz high power RF wireless anti drone FPV UAV blocking module with GaN and circulator

Specific frequency 1100-1300MHz



Overview

1 This product could be used for blocking signal with image transmission of drones.

2 SMA female connector(could connect yagi, omnidirectional antenna)

3 Customizable frequency (for large amount)

4 High power with GaN chip and circulator (longer product life)



Technical data sheet

Number Items Specifications(50watt one)
1 Frequency Range 1100-1300MHz
2 Operating Voltage 28V
3 Flatness ±0.5dB
4 Output Power 47dBm
5 Current 3.90A @28V, 47dBm
6 Efficiency 45%@47dBm
7 LED State Red
8 Operating Temperature -30℃～85℃
9 Storage Temperature -40℃～150℃
10 Operating Humidity ＜95%RH
11 RF PORT Output: SMA-F
12 Power Socket 15cm red/black wire
13 Shell Material Aluminum
14 Shell Size 128*53*17mm
15 Net Weight 0.25Kg



Product detailed pictures





For this product, (10w and 20w should use 24V DC as power supply)

(40w and 50w version should use 28V DC as power supply)


High power signal blocking module available

(200-300MHz);(300-400MHz);(400-500MHz);

(500-600MHz);(600-700MHz);(700-800MHz);

(650-850MHz);(830-960MHz);(800-900MHz);

(900-1100MHz);(1100-1300MHz);(1300-1500MHz);

(1500-1700MHz);(2300-2500MHz);

And there are some customized frequency.

Please feel free to inquiry for customized frequency


Appendix

1 VCO is the signal source.

2 Efficient heat sinks and fans are needed when using.
