IND-Booster ROC-4 Dual-Band Signal Booster Antenna (2.4G/5.8G)

Enhance Your Drone Performance with Cutting-Edge Signal Stability

Overview
The ROC-4 by IND-Booster is designed to deliver exceptional performance for drone enthusiasts and professionals alike. With dual-band support (2.4G & 5.8G), 10W output power, and a powerful 8000mAh battery, ROC-4 ensures uninterrupted signal quality and extended flight range for all your drone applications. Whether for aerial photography, surveillance, or industrial use, ROC-4 will elevate your drone capabilities to new heights.

Key Features

· Frequency Range:
2.4GHz (2400-2500MHz) / 5.8GHz (5150-5850MHz)

·Maximum Output Power:
40dBm (10W) for both frequency bands

· Antenna Gain:
15dB (2.4G) ±1 | 18dB (5.8G) ±1

· Battery Capacity:
8000mAh for long-lasting performance

· Receiving Gain:
16dB ±1 (both bands)

· Transmission Gain:
18dB ±1 (both bands)

· Input Trigger Power:
Min: 3dBm / Max: 23dBm

· EVM (Error Vector Magnitude):
3% @ 33dBm (802.11g 54Mbps OFDM 64QAM BW 20MHz) / 3% @ 33dBm (802.11a 54Mbps OFDM 64QAM BW 20MHz)

· Noise Figure:
< 2.5dB

· Current Supply:
2.2A @ Pout 40dBm, 12V

· TX/RX Switch Time Delay:
< 1 μs

· Charging Voltage:
5V/2A via Type-C port

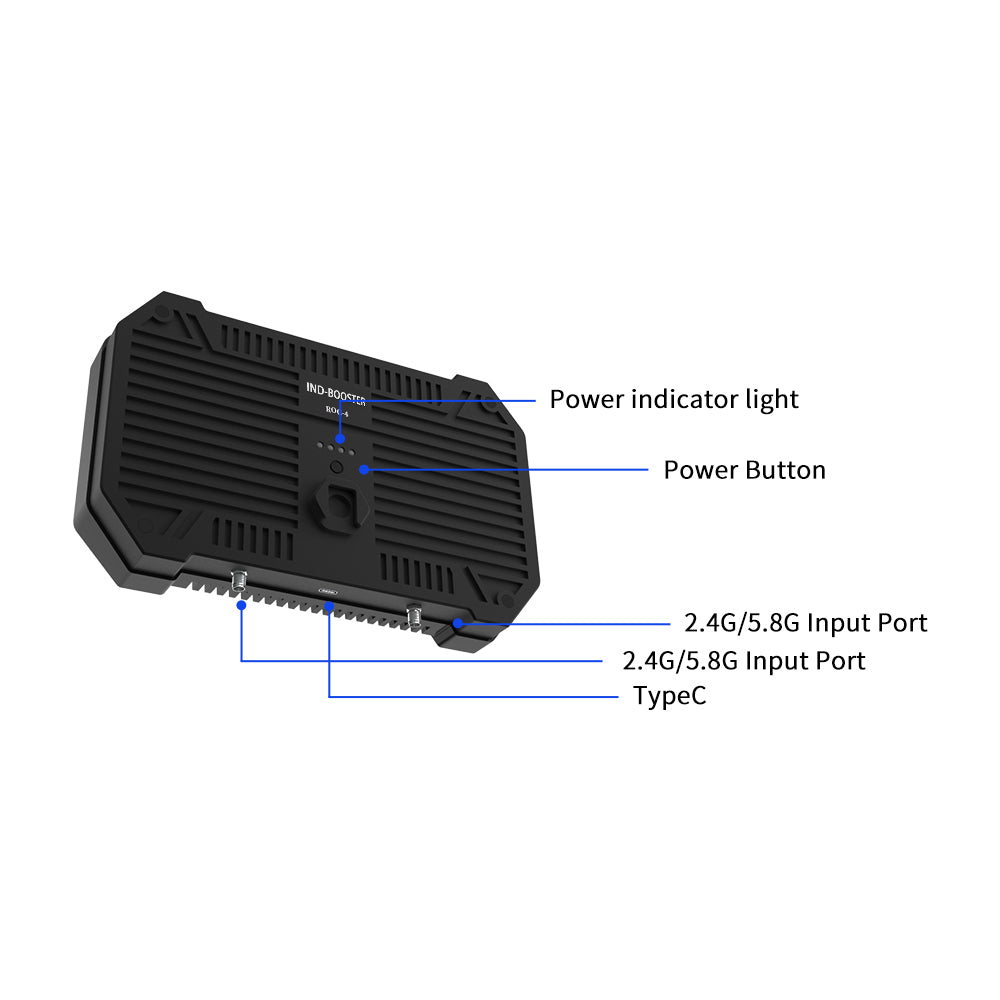

· LED Indicator:
4 Blue LEDs for status indication

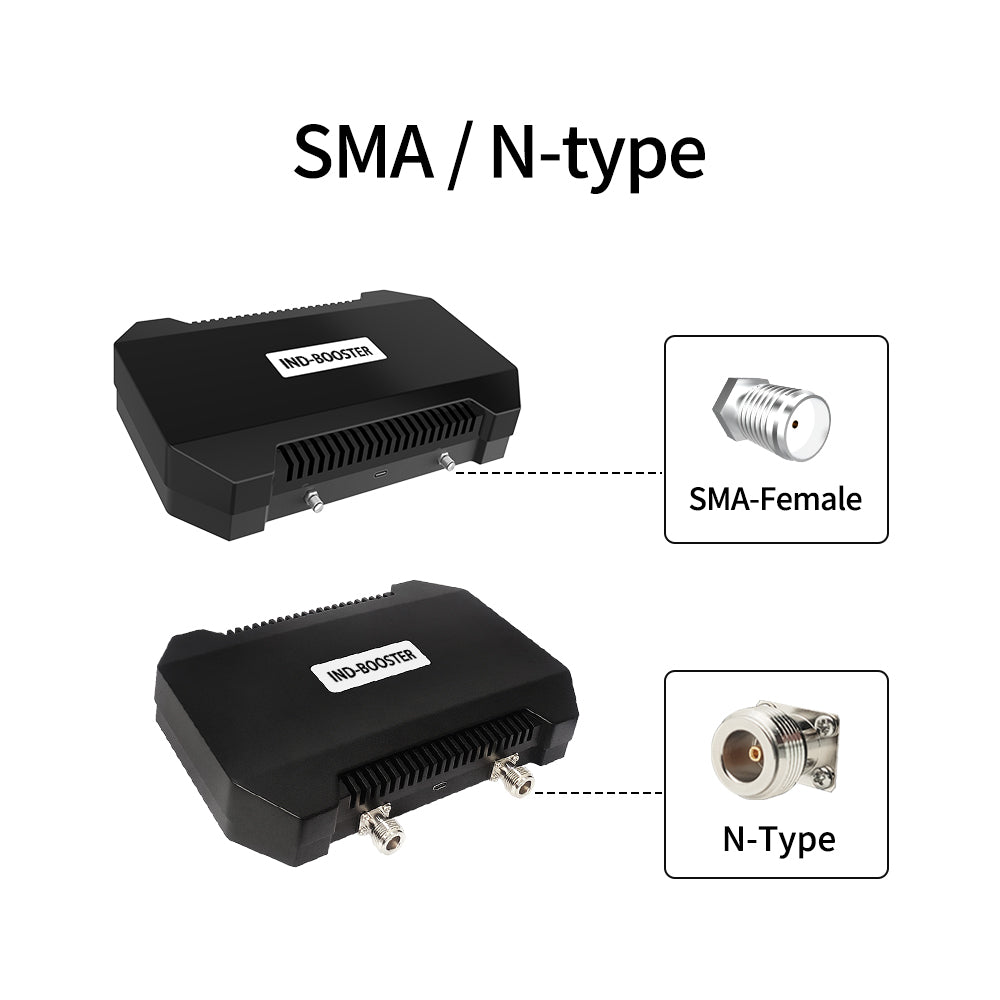

· RF Connector:
SMA-Female

· Operating Temperature:
-40°C to +70°C

· Storage Temperature:
-40°C to +150°C

· Operating Humidity:
Up to 95% relative humidity

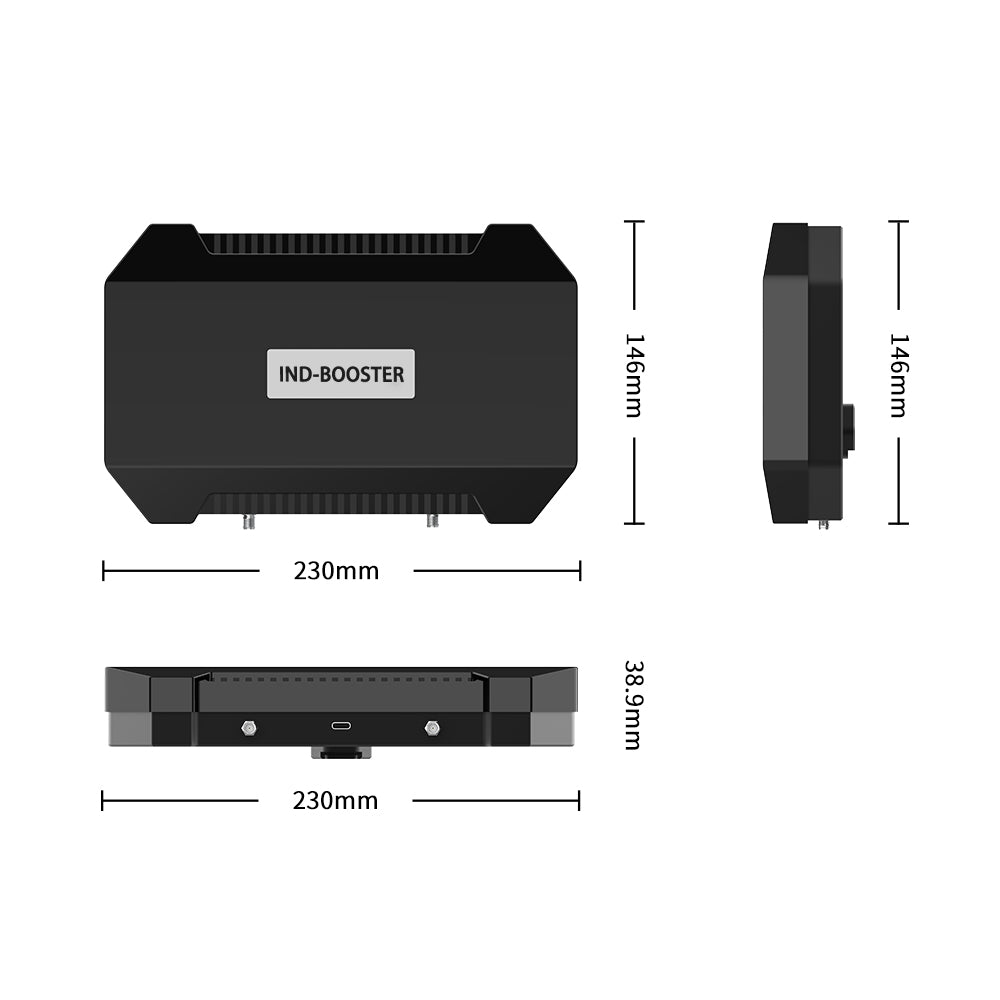

· Shell Dimensions:
230mm x 146mm x 39mm

· Shell Material:
Durable Aluminum for robust protection

Performance & Durability
The ROC-4 is built to withstand harsh environmental conditions, offering reliable signal strength even in extreme temperatures and high humidity. It is designed for professionals who require consistent, high-performance signal amplification across diverse operational environments.

Upgrade Your Drone Experience
Embrace the future of aerial technology with IND-Booster's ROC-4. Whether you're operating drones for recreational use, aerial photography, or professional surveying, the ROC-4 offers unmatched signal clarity and extended range to ensure your success in the skies.
