High Gain 1.6GHz Directional  Antenna

Yagi antenna 1550-1620MHz 8dBi

1 The yagi antenna could bear max power 50watt.

2 The length of the omnidirectional antenna is about 34 cm.

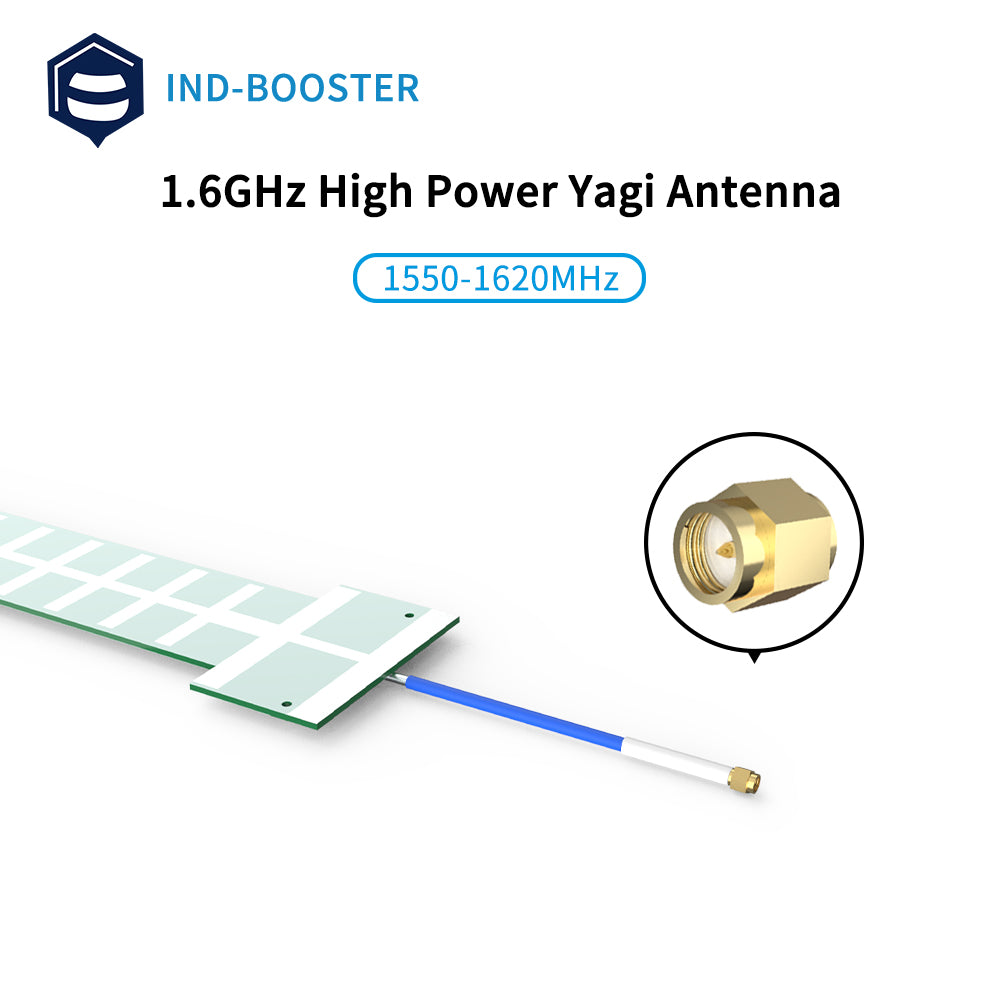

3 The head of the YAGI antenna is SMA male.

Technical data sheet

Frequency: Optional

Gain: 8dBi

VSWR ＜ 1.5:1

Nominal Impedance: 50 Ohms

Polarization mode: vertical or horizational

Horizational beamwidth: 25°

Vertical beamwidth：22°

F/B ratio:≥20dB

Maximum power: 50W

Lightning protection: DC ground

Connector type: SMA-Male

Product detailed pictures

Head: SMA male
