Description
x433MHz high power RF wireless module
Undirectional amplifier (signal booster only TX no RX)
Description
1 SMA female connector(could connect yagi, omnidirectional antenna)
2 Customizable frequency (for large amount)
3 High power with GaN chip(longer product life)
Signal source is necessary.
Technical data sheet
| Number | Items | Specifications |
| 1 | Frequency Range | 400-500MHz |
| 2 | Operating Voltage | 28V |
| 3 | Gain(S21) | 37dB(customizable 25-37dB) |
| 4 | Input Return Loss(S11) | -15dB |
| 5 | Flatness | ±0.5dB |
| 6 | Output Power | 47dBm |
| 7 | Current | 4.30A @28V, 47dBm |
| 8 | Efficiency | 45%@47dBm |
| 9 | LED State | Red |
| 10 | Operating Temperature | -30℃～85℃ |
| 11 | Storage Temperature | -40℃～150℃ |
| 12 | Operating Humidity | ＜95%RH |
| 13 | RF PORT | Output: SMA-F Input:SMA-F |
| 14 | Power Socket | 15cm red/black wire |
| 15 | Shell Material | Aluminum |
| 16 | Shell Size | 96*53*17mm |
| 17 | Net Weight | 0.15Kg |

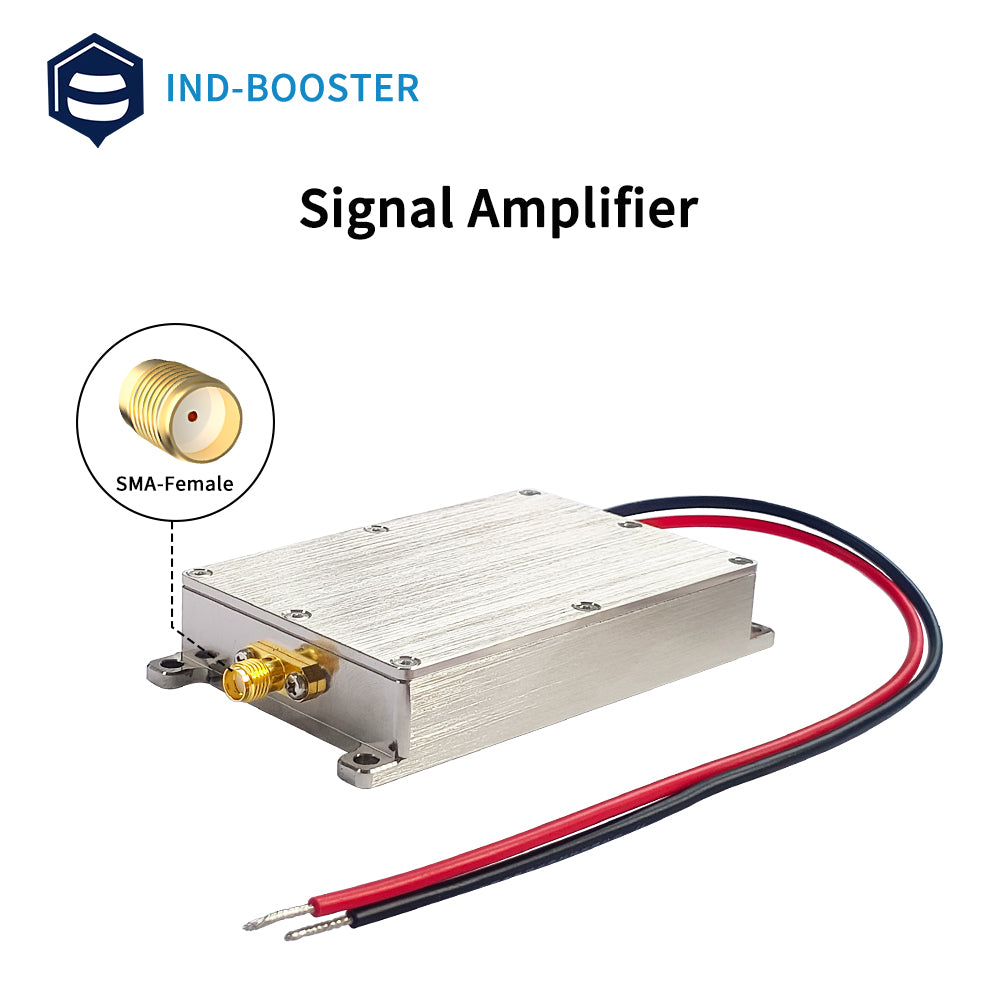

Product detailed pictures
Appendix
1 This module has only TX function and no RX(Receiving) function.
2 Suitable signal source is need for the input of signal.
3 Efficient heat sinks and fans are needed when using.
4 It can be adapted to Yagi, flat panel antennas, and omnidirectional antennas.
