1.4GHz high power RF wireless bidirectional amplifier both TX and RX

1420-1470MHz



Description

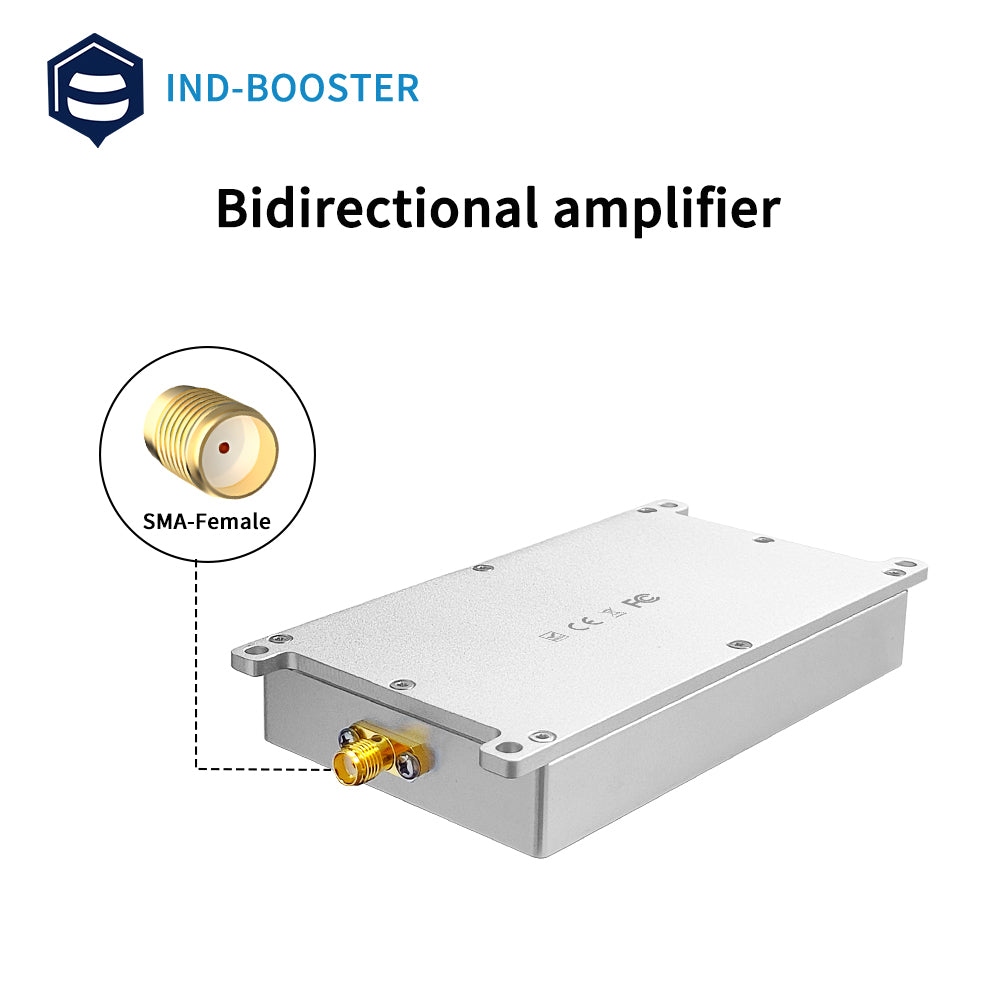

1 SMA female connector（both TX and RX)

2 This product enhance signal with both receiving and transmission

Technical data sheet

Number Items Specifications(20watt one)
1 Frequency Range 1420-1470MHz
2 Operating Voltage 12-24V
3 Receiving gain 18db±1
4 Transmission gain 18db±1
5 Max output power(P1dB) 43dBm(20w)
6 Input trigger power 3dBm-22dBm
7 EVM 3%@34dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8 Noise figure <2.5db
9 Current supply 1.7A@34dBm 12V
10 TX/RX Switch Time Delay ＜1 us

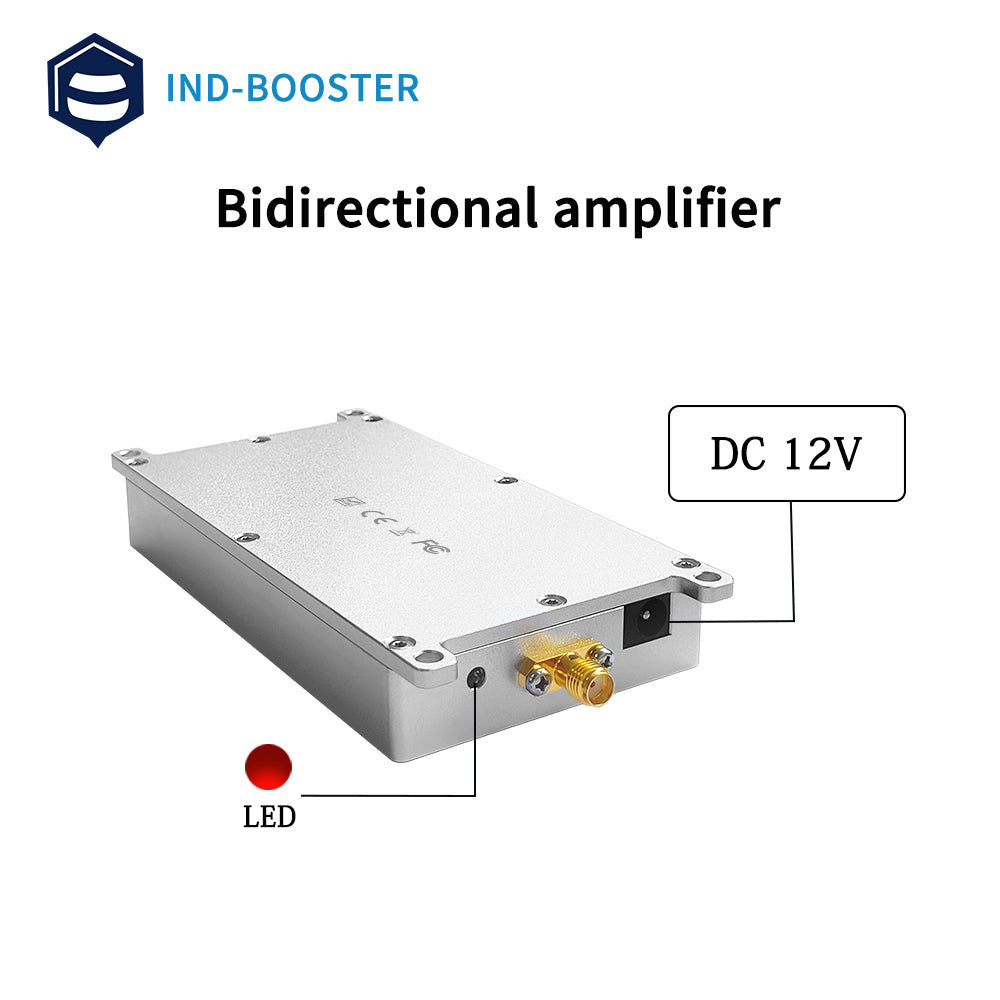

11 LED Indicator Transmitter: Green; Receiver: Red
12 OperatingTemperature -30℃-70℃
13 StorageTemperature -40℃～+150℃
14 Power socket 5.5*2.1mm
15 Shell Size 104*60*17mm
16 Net Weight 0.25Kg

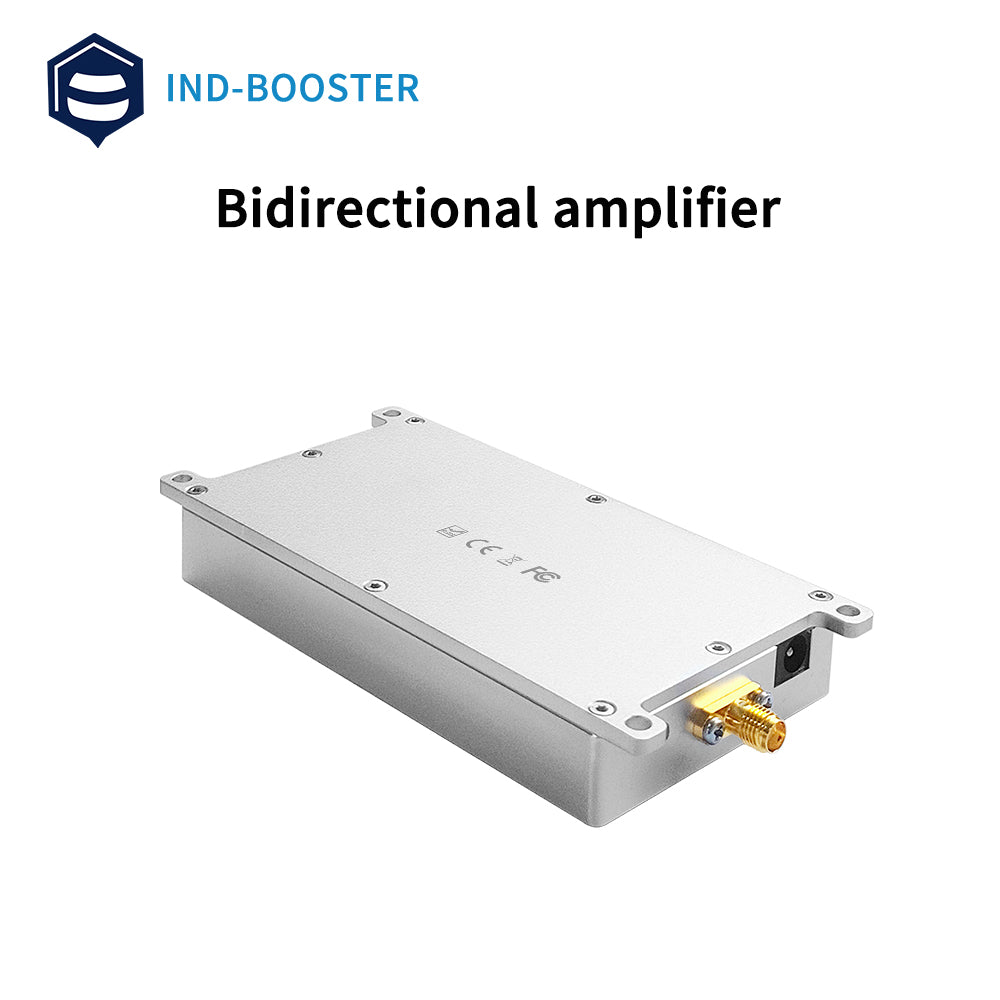

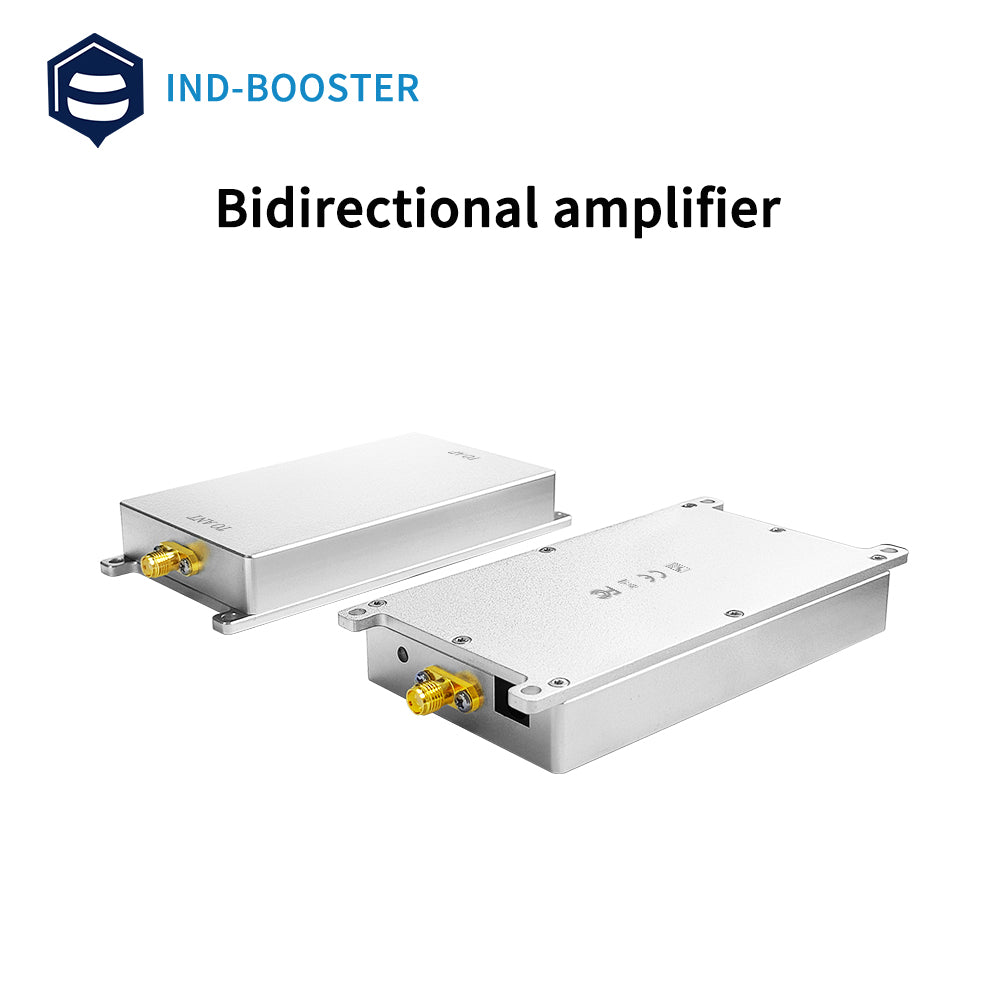

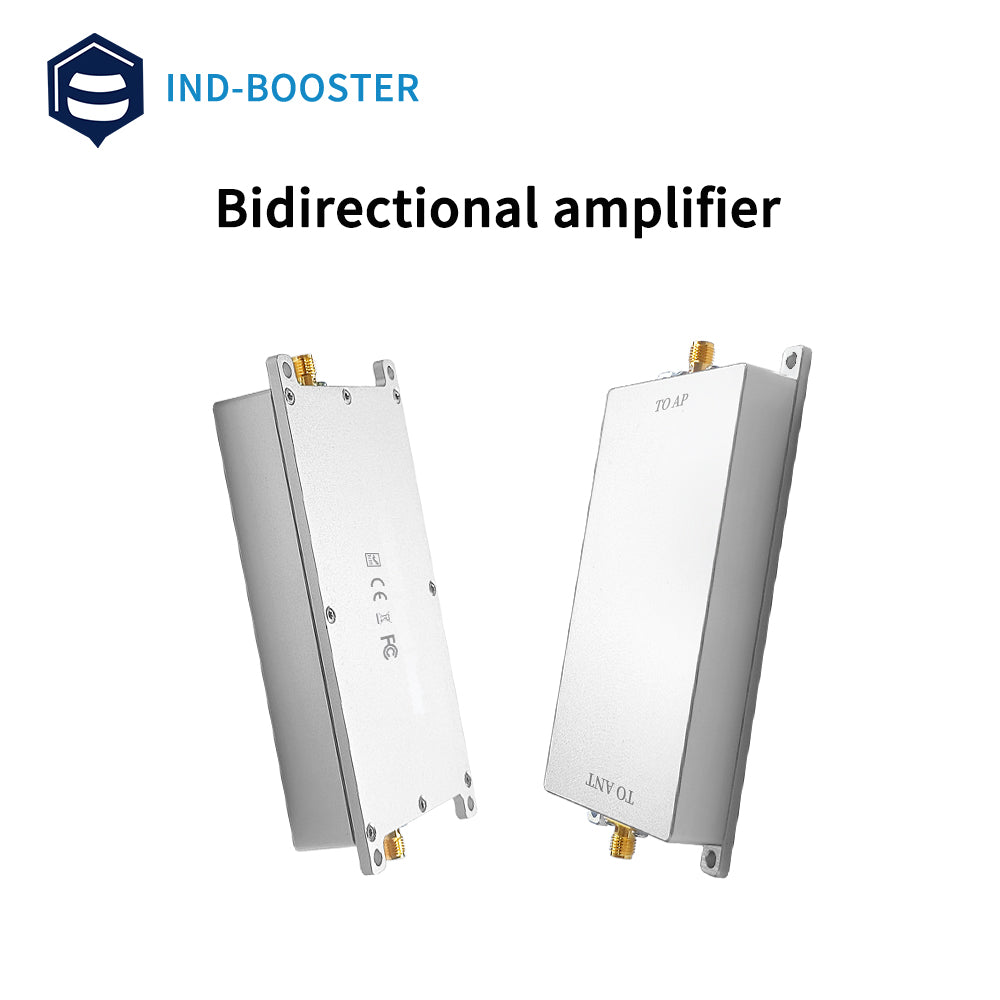

Product detailed pictures


Appendix

1 Efficient heat sinks and fans are needed when using.

2 The connectors are both sma female type.
