Description
xDual band amplifier
(2.4+2.4GHz； 2.4+5.8GHz；5.8+5.8GHz）4w
Bidirectional amplifier
Description
IND-Booster dual band amplifier
IND-Booster offers three powerful versions of dual-band amplifiers, each featuring two inputs and two outputs to cater to different wireless communication needs: 2.4+2.4 GHz, 5.8+2.4 GHz, and 5.8+5.8 GHz. These amplifiers are designed to enhance signal strength and ensure reliable connectivity in demanding environments.
The 5.8+5.8 GHz version, for instance, operates within the frequency range of 5725–5850 MHz and delivers 16dB receiving gain and 18dB transmission gain. It features a 36dBm maximum output power (4W), supporting stable performance even in long-range communications. The amplifier’s low noise figure (<3.0dB) and quick switching time (<1us) make it suitable for high-speed, low-latency applications.
All three versions share common features such as a wide operating voltage range (5-16V), LED indicators, and a durable aluminum shell with a compact size of 65x61x12mm. Whether for drone communication, industrial automation, or point-to-point wireless networks, IND-Booster amplifiers deliver enhanced signal quality and coverage for diverse applications.
Technical data sheet
| 1 | Frequency Range | 2.4GHz & 5.15-5.85GHz |
| 2 | Operating voltage | 5-16V |
| 3 | Receiving gain | 16dB±1 |
| 4 | Transmission Gain | 18dB±1 |
| 5 | Max Output Power(P1dB) |
36dBm(4W) |
| 6 | Input Trigger Power | Min:3dBm Max:20dBm |
| 7 | EVM | 3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Current Supply | 485mA@Pout 28dBm 12V |
| 9 | TX/RX Switch Time Delay | ＜1 us |
| 10 | LED Indicator | Transmitter: Green; Receiver: red |
| 11 | OperatingTemperature | -30℃～+70℃ |
| 12 | Operating Humidity | Up to 95% rel. humidity |
| 13 | RF Connector | Input: SMA-K; Output: RP-SMA-K |
| 14 | Power Socket | 2.5*0.7mm DC( default) |

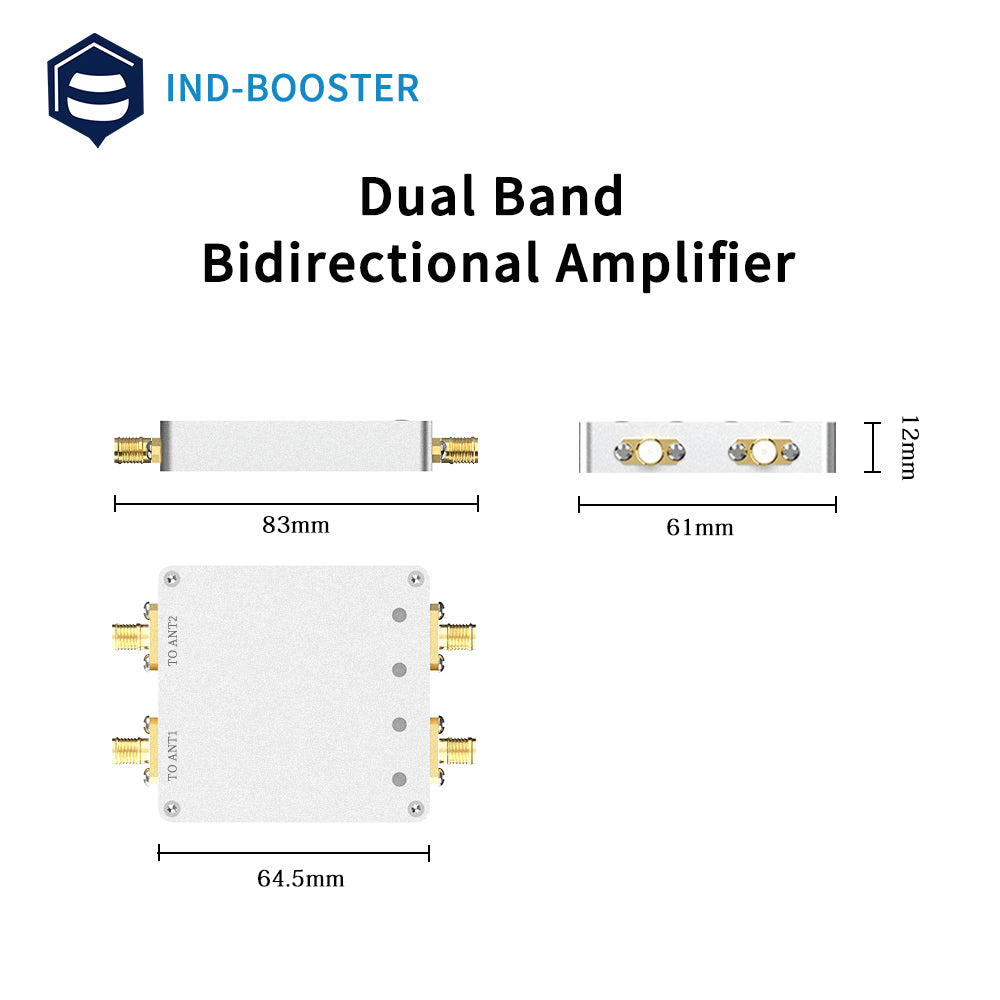

| 15 | Shell Size | 65*61*12(mm) |

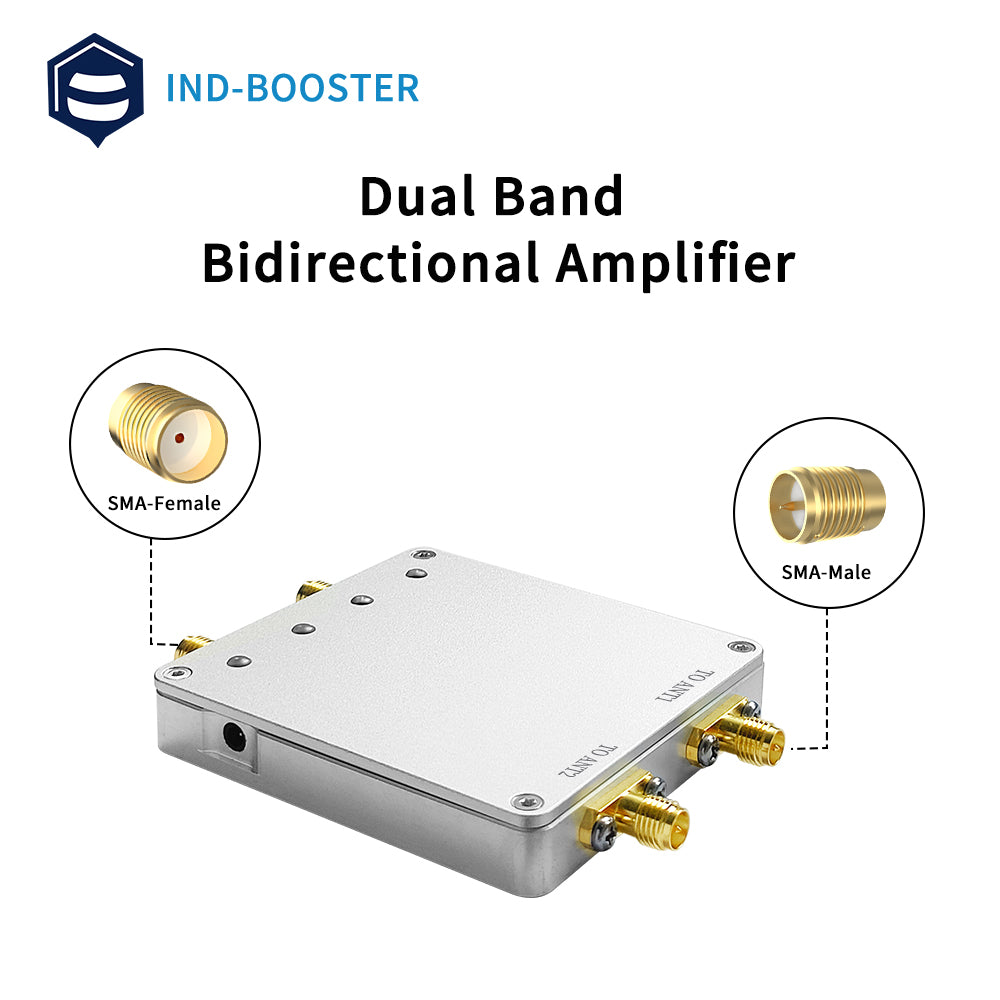

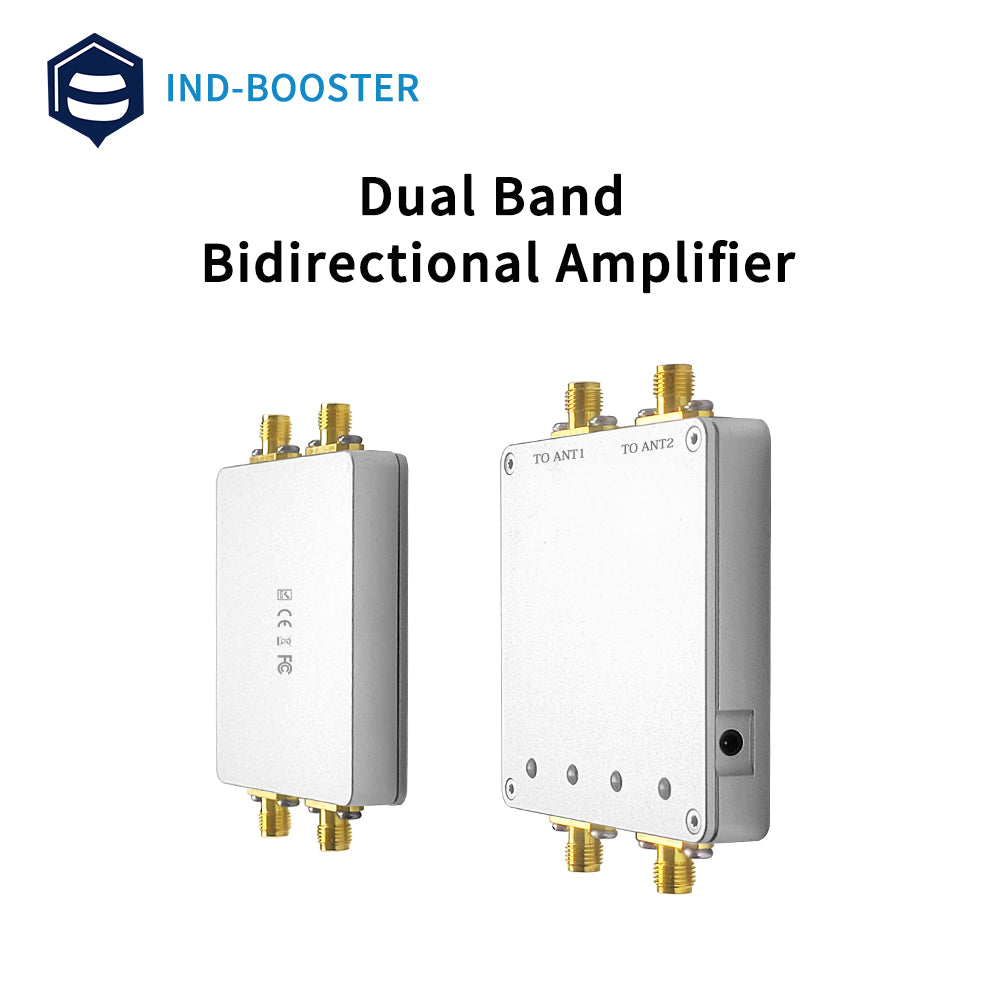

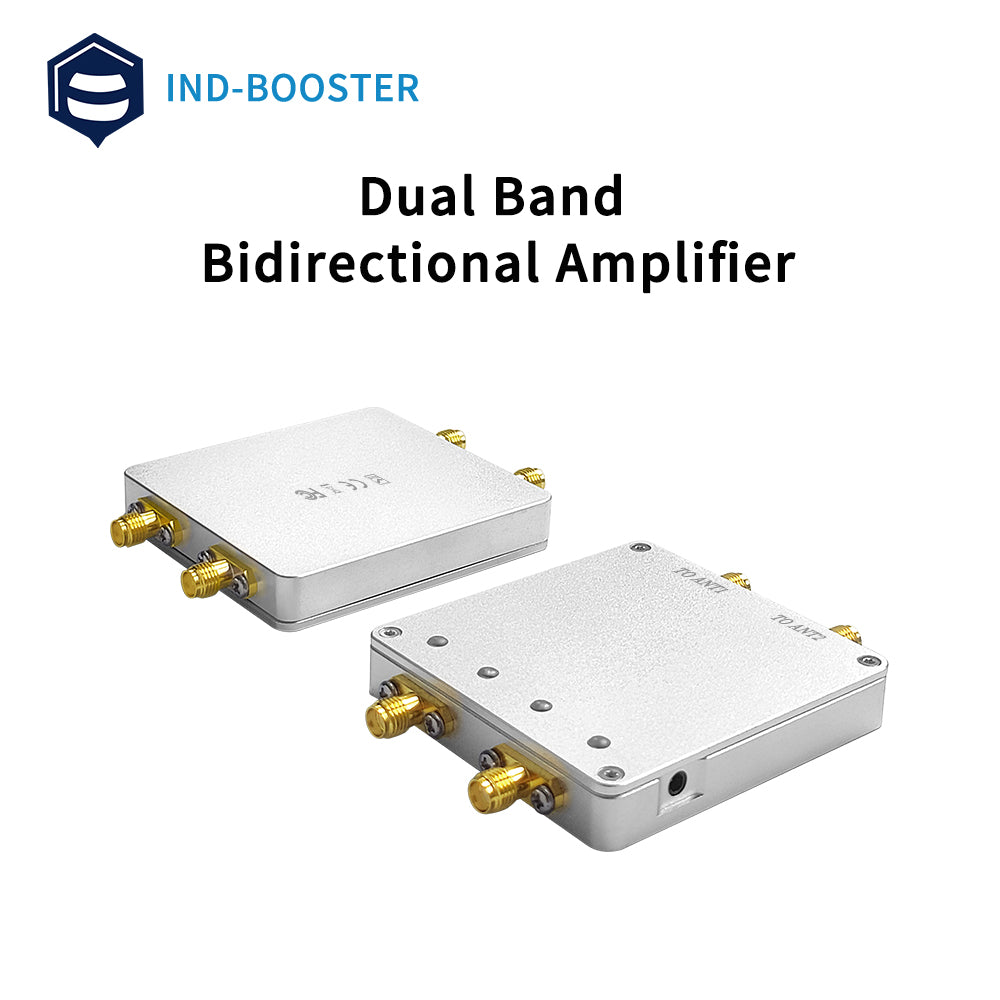

Product detailed pictures
