Description

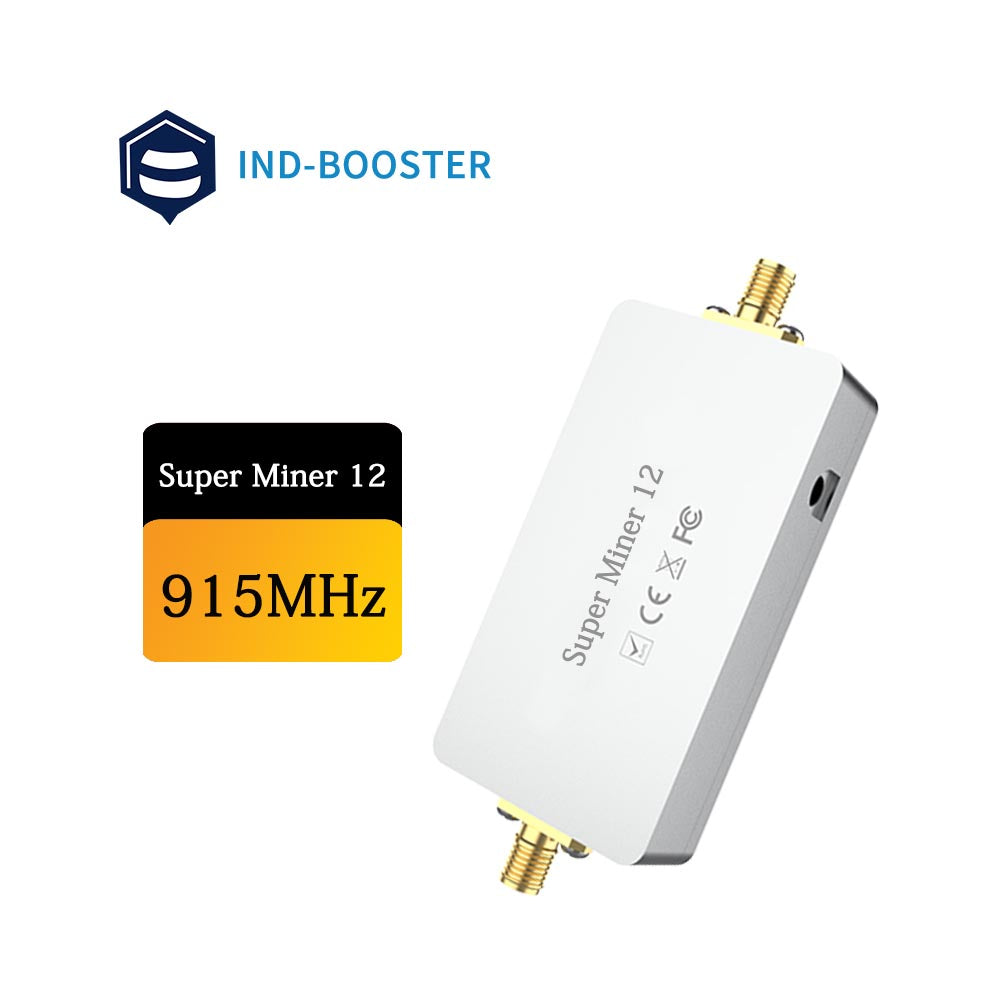

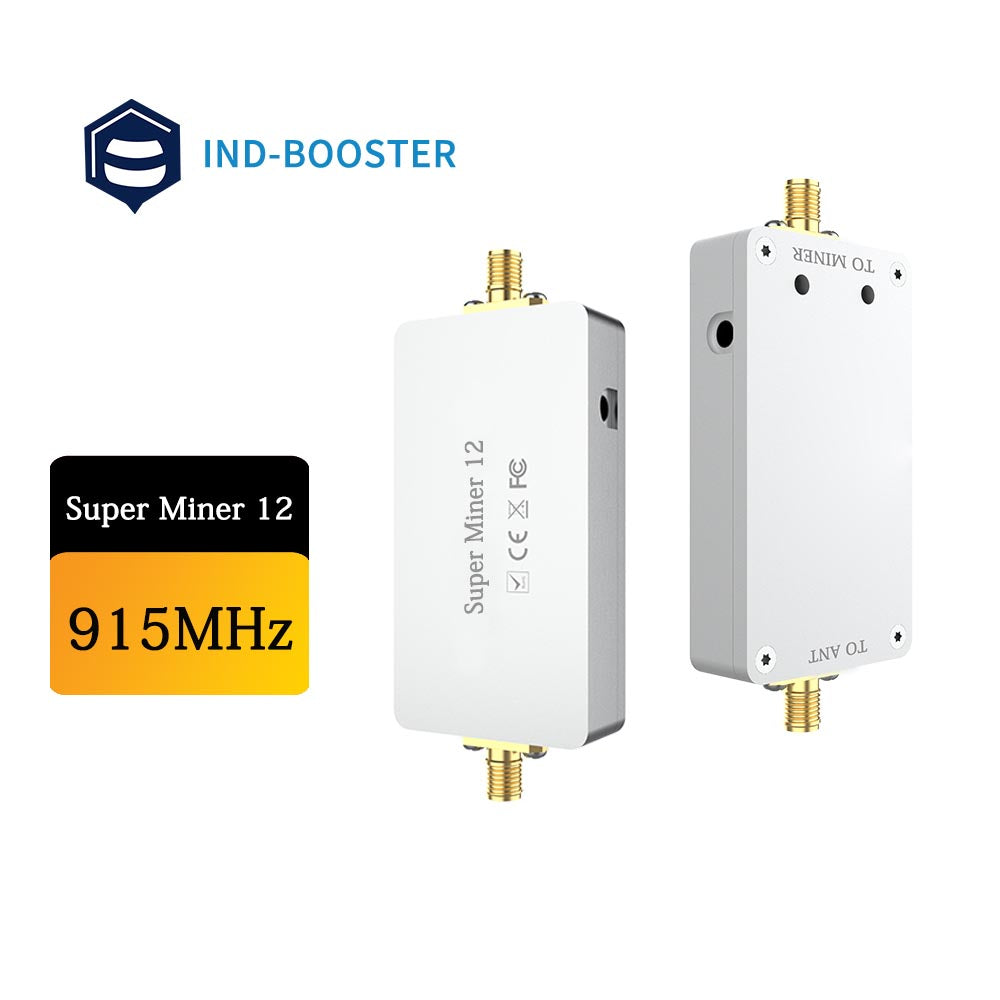

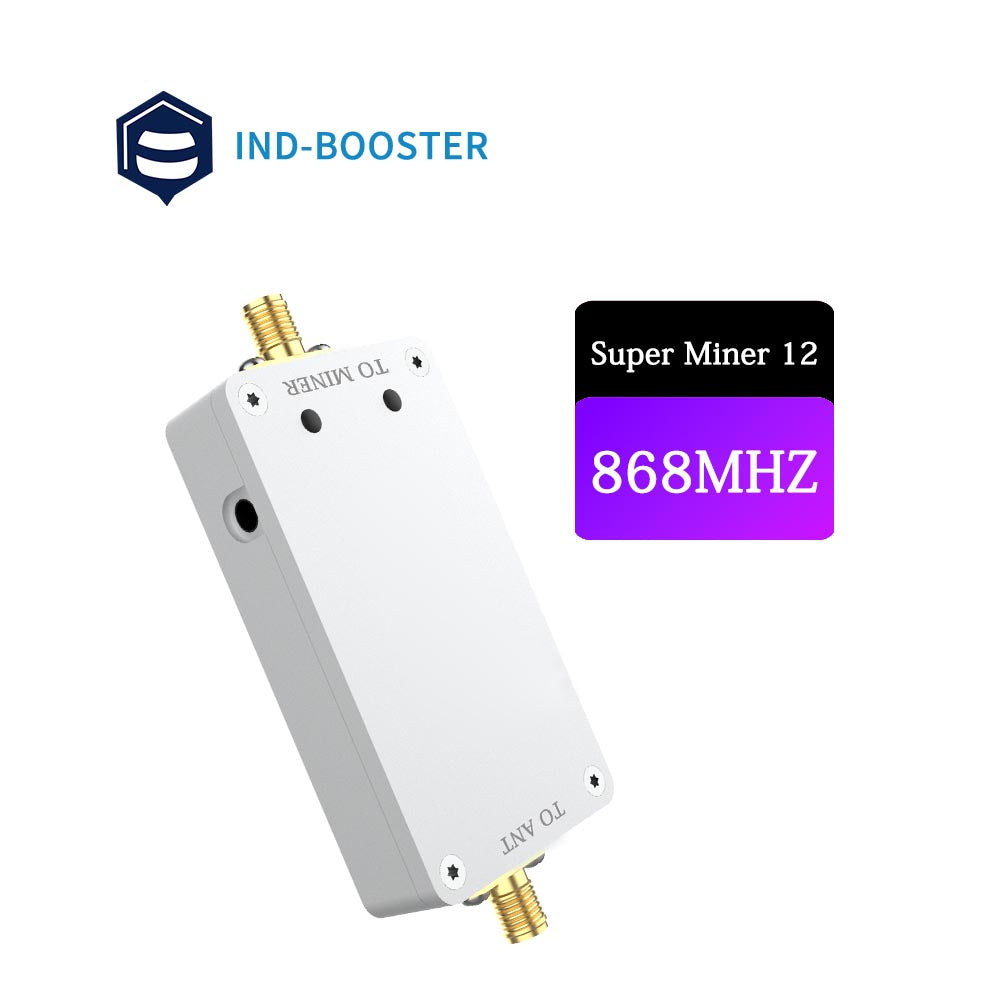

xDual band signal amplifier for IOT and Mining
868MHz and 915MHz
1. Function
-
Enhances weak RF signals for stable communication
-
Improves transmission distance of IoT devices
-
Reduces signal loss with low noise figure design
-
Fast TX/RX switching for real-time data transfer
-
Compact and lightweight aluminum housing for easy integration
2. Applicable Environment
-
Suitable for IoT applications, industrial monitoring, smart devices, and mining communication systems.
-
IoT applications such as smart meters, sensors, and tracking devices
3. Parameters
| Number | Items | Specifications |
|---|---|---|
| 1 | Frequency Range | 863-870MHz & 902-928MHz |
| 2 | Operating Voltage | 6-24V |
| 3 | Receiving Gain | 17dB±1 |
| 4 | Transmission Gain | 6dB±1 |
| 5 | Max Output Power (P1dB) | 30dBm (1W) |
| 6 | Input Trigger Power | Min: 0dBm Max: 20dBm |
| 7 | EVM | 3% @ 26dBm |
| 8 | Noise Figure | ＜2.0dB |
| 9 | Current Supply | 430mA @ Pout 30dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 µs |
| 11 | LED Indicator | Transmitter: Green; Receiver: Red |
| 12 | Operating Temperature | -40℃～+70℃ |
| 13 | Storage Temperature | -40℃～+150℃ |
| 14 | Operating Humidity | Up to 95% rel. humidity |

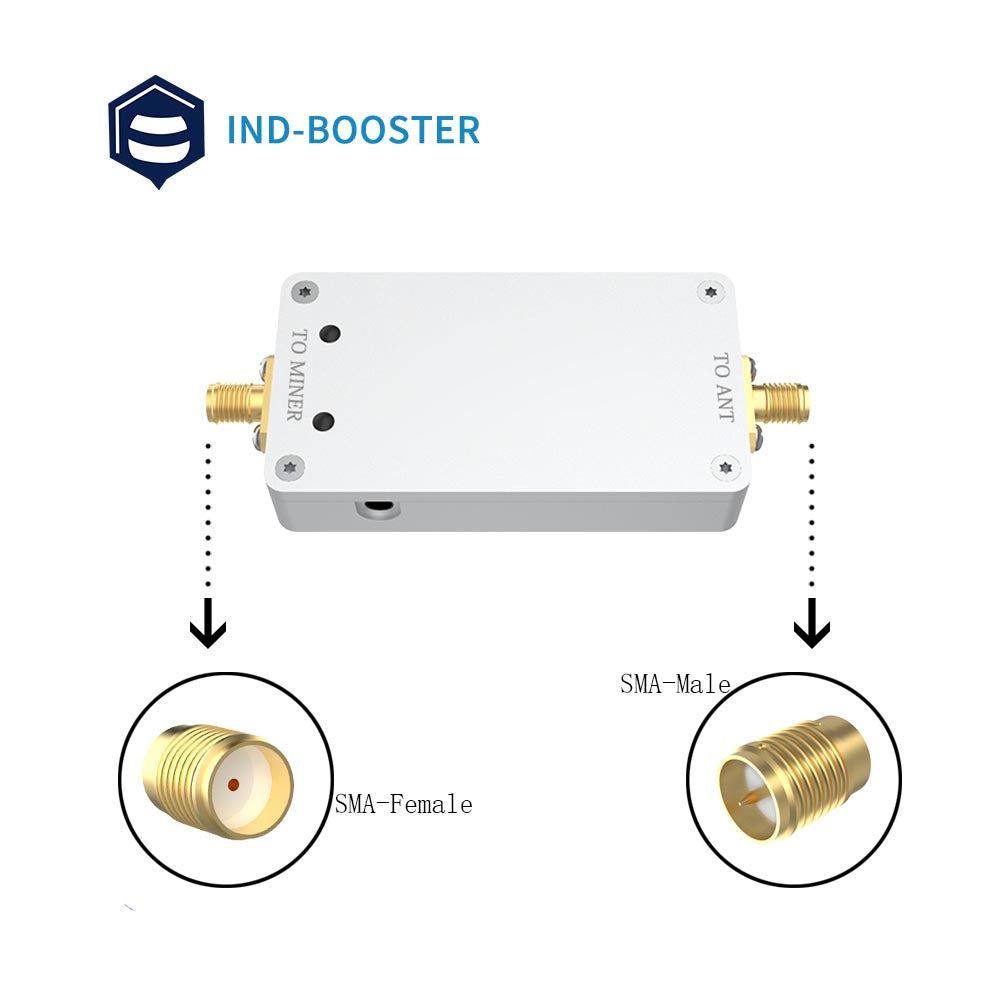

| 15 | RF Connector | Input: SMA-Female; Output: RP-SMA-Female |
| 16 | Power Socket | Cable power supply |
| 17 | Shell Size | 64.534.510mm |
| 18 | Shell Material | Aluminum |
| 19 | Net Weight | 0.06Kg |
4. Packaging List and product size
-
1 Pcs of Charger
-
1 × INDBOOSTER Amplifier
