Description
xHigh Gain Omnidirectional Antenna
Multi band optional
| No. | Frequency | Gain |
| 1 | 300-400 | 4dbi |
| 2 | 400-500 | 4dbi |
| 3 | 650-850 | 8dbi |
| 4 | 700-800 | 8dbi |
| 5 | 860-930 | 8dbi |
| 6 | 960-1100 | 8dbi |
| 7 | 1380-1500 | 8dbi |
| 8 | 1560-1620 | 8dbi |
| 9 | 2400-2500 | 8dbi |
| 10 | 5150-5350 | 8dbi |
| 11 | 5750-5850 | 8dbi |
1 The ominidirectional antenna could bear max power 100watt.
2 The length of the omnidirectional antenna is about 65 cm.
3 The head of the omnidirectional antenna is N male.
Technical data sheet
Frequency: Optional
Gain: 4 dBi or 8dBi
S11: ＜ 1.5dB
Impedance: 50 Ω
Polarization mode: vertical
Radiation direction: omnidirectional
Maximum power: 100W
Lightning protection: DC ground
Connector type: N-Male
Antenna size :625MM*20MM
Material: glass fiber reinforced plastic

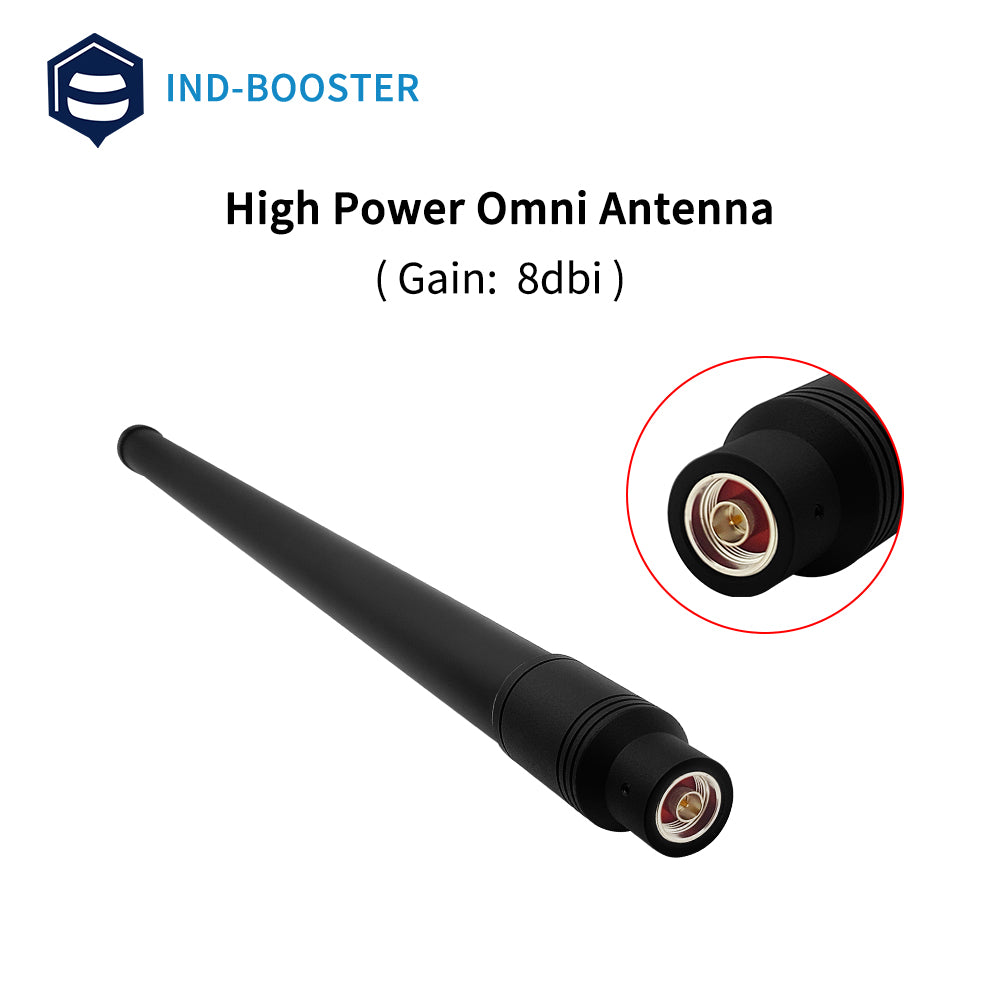

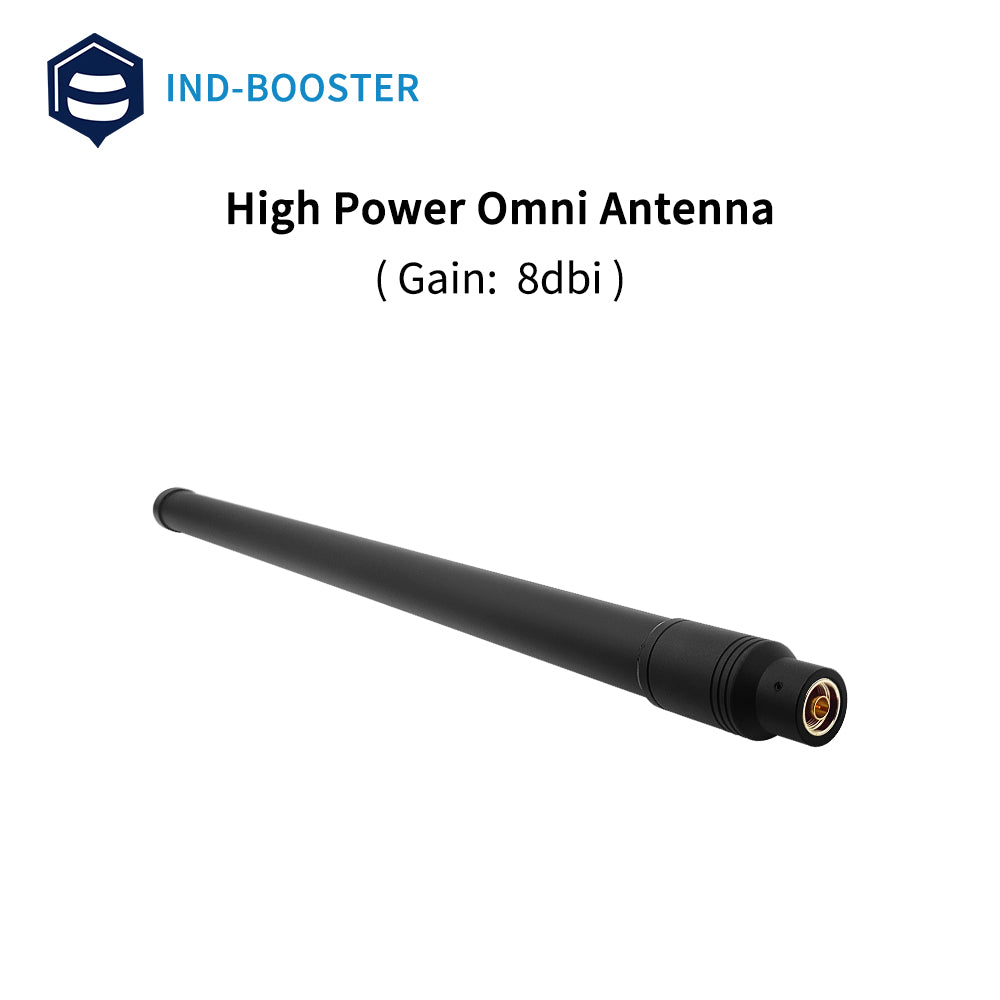

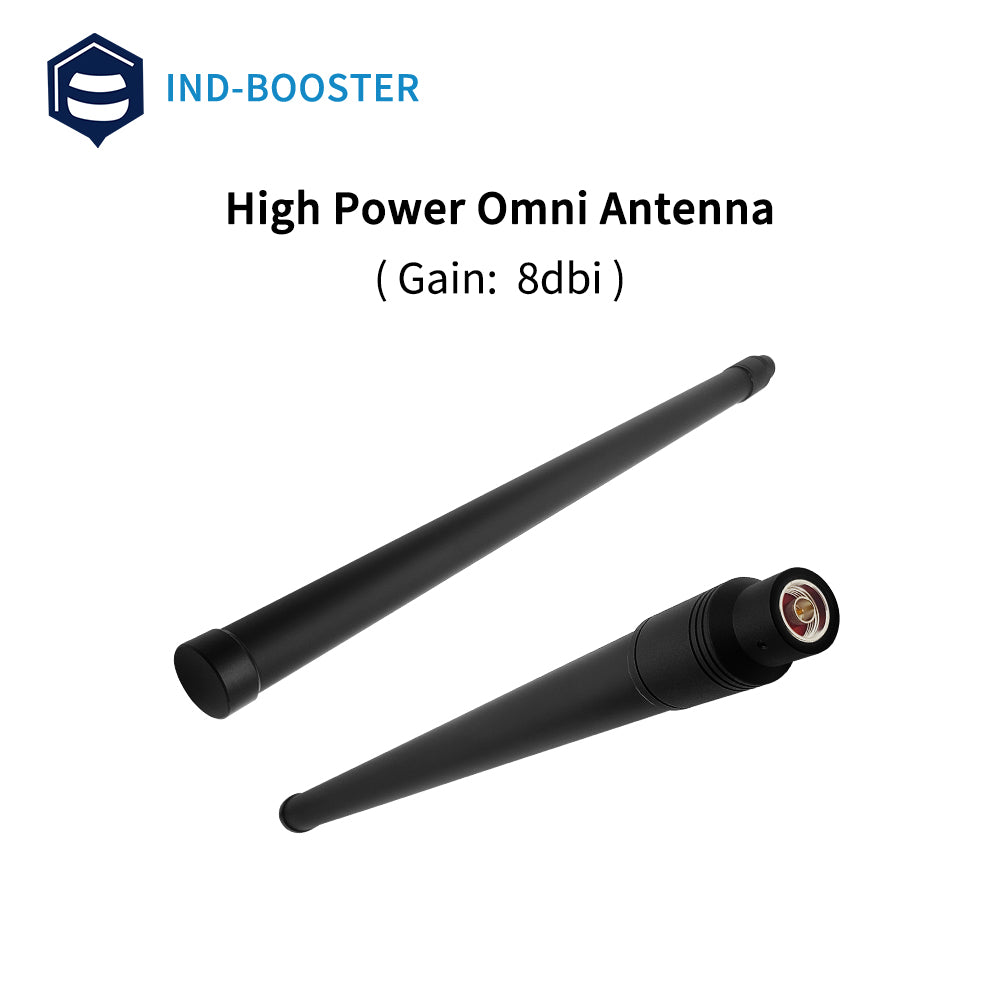

Product detailed pictures

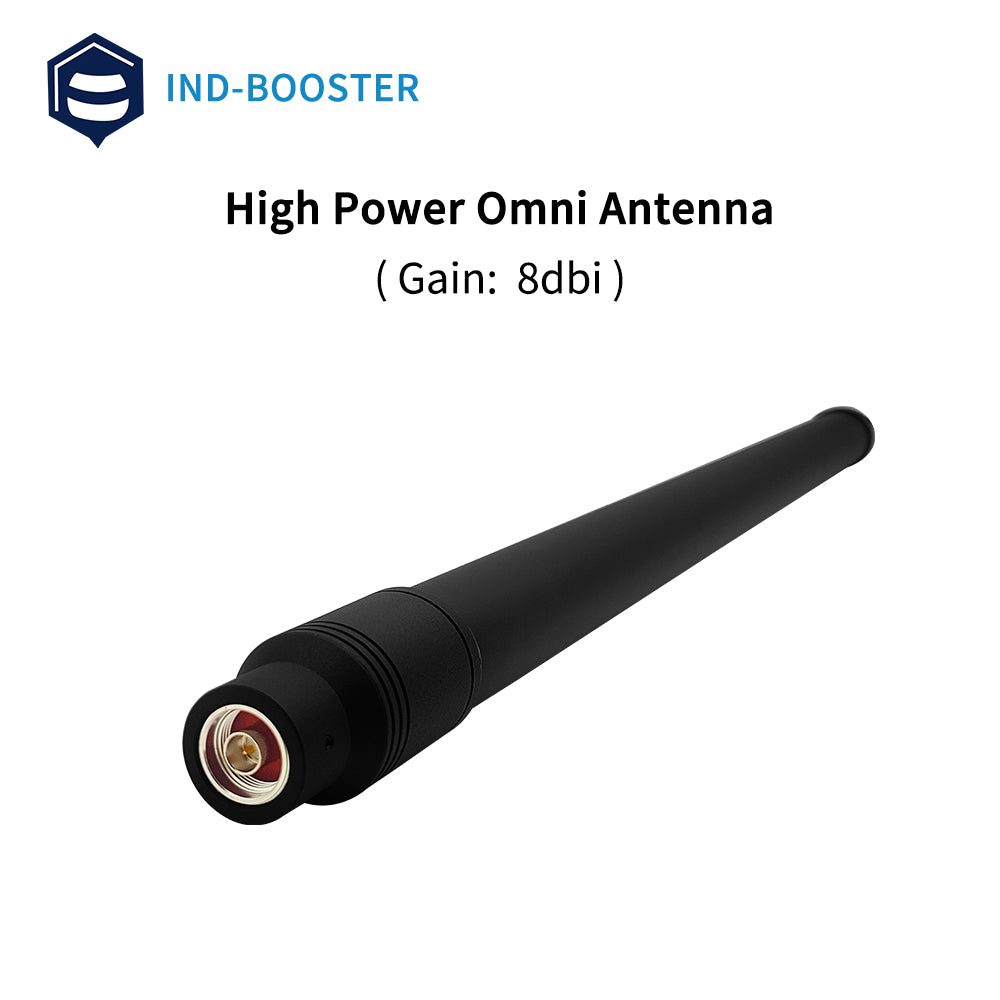

Head: N male
