x2.4&5.8GHz RF wireless bidirectional amplifier both TX and RX
2.4+5.8 dual band signal amplifier
Description

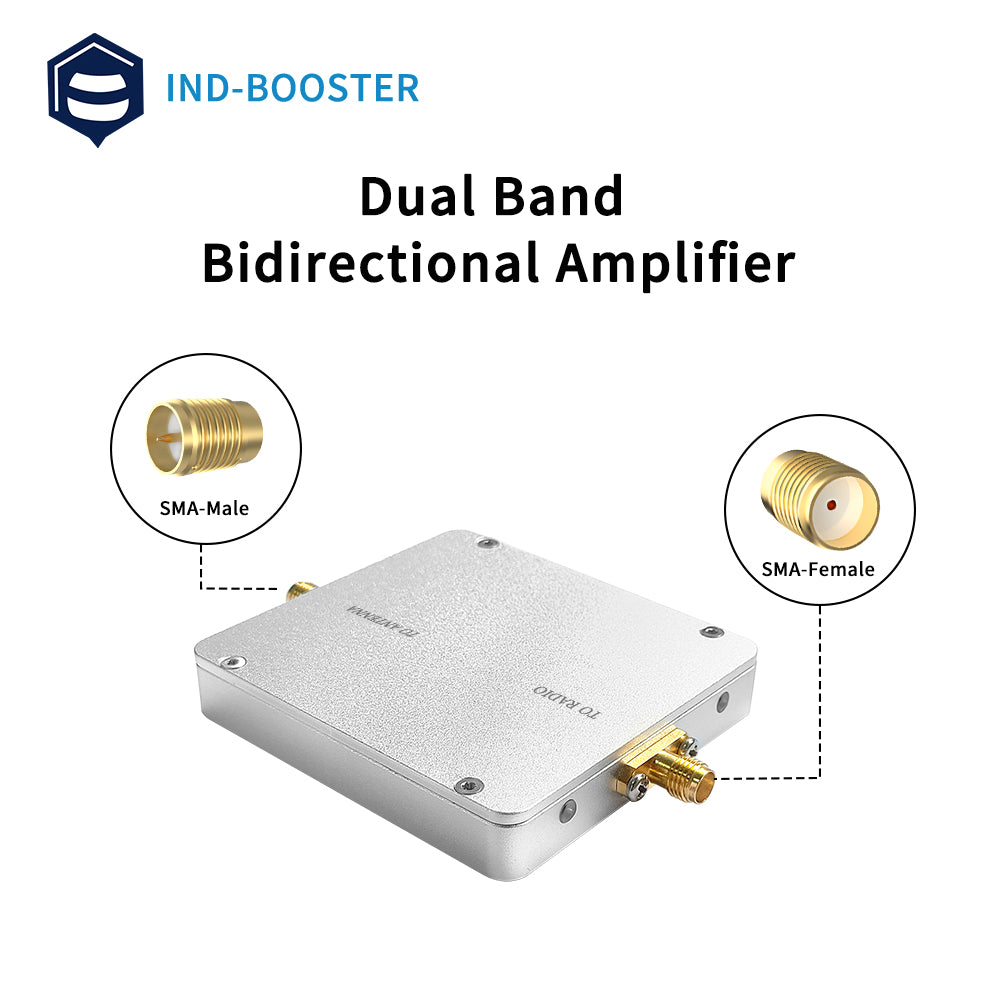

1 SMA female connector（both TX and RX)
2 This product enhance signal with both receiving and transmission
Technical data sheet
| Number | Items | Specifications |
| 1 | Frequency Range | 2.4-2.5GHz & 5.725-5.85GHz |
| 2 | Operating Voltage | 5-16V |
| 3 | Receiving gain | 18db±1 |
| 4 | Transmission gain | 18db±1 |
| 5 | Max output power(P1dB) | 36dBm(4w) |
| 6 | Input trigger power | 3dBm-23dBm |
| 7 | EVM | 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise figure | <2.5db |
| 9 | Current supply | 580mA@38dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 us |
| 11 | LED Indicator | Transmitter: Green; Receiver: Red |
| 12 | OperatingTemperature | -30℃-70℃ |
| 13 | StorageTemperature | -40℃～+150℃ |
| 14 | Power socket | 5.5*2.1mm |
| 15 | Shell Size | 65*61*12mm |
| 16 | Net Weight | 0.12Kg |
Product detailed pictures
Product with parts(1 set)
Appendix
1 The connectors are both sma female type.
