Description
xINDBOOSTER

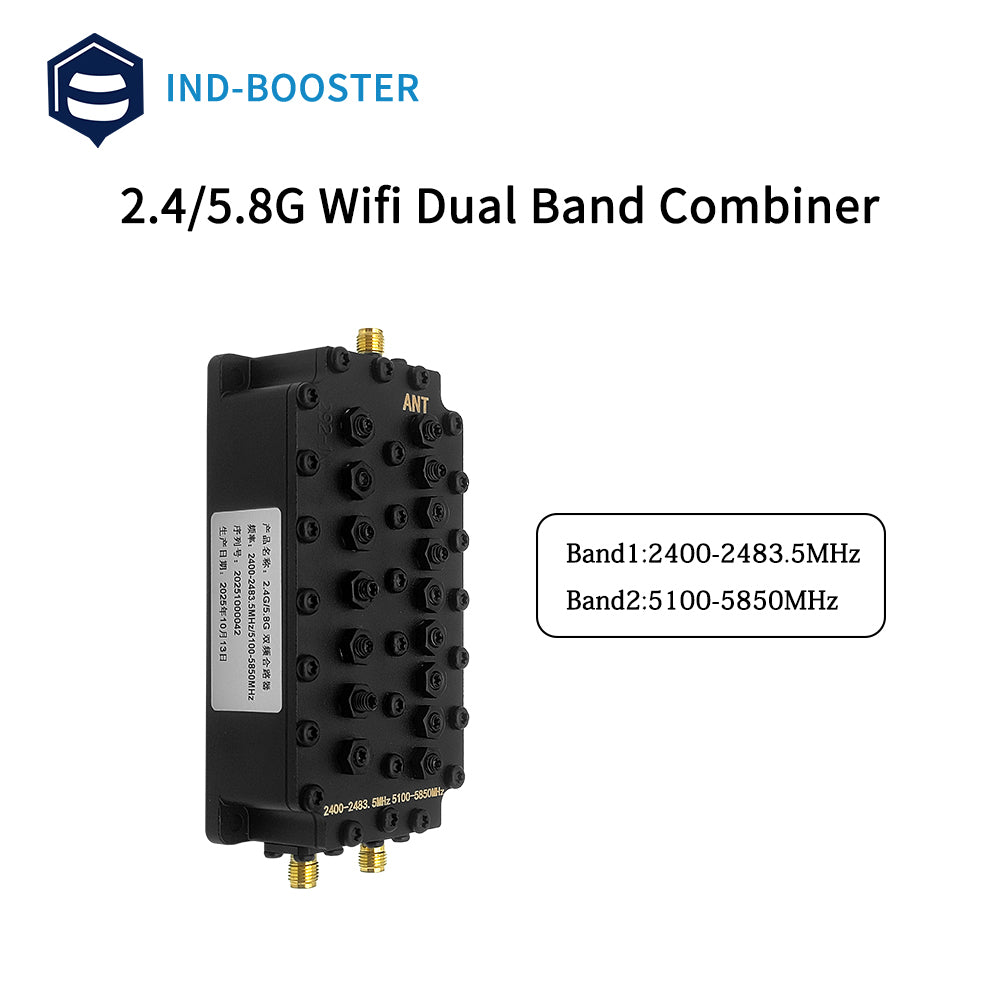

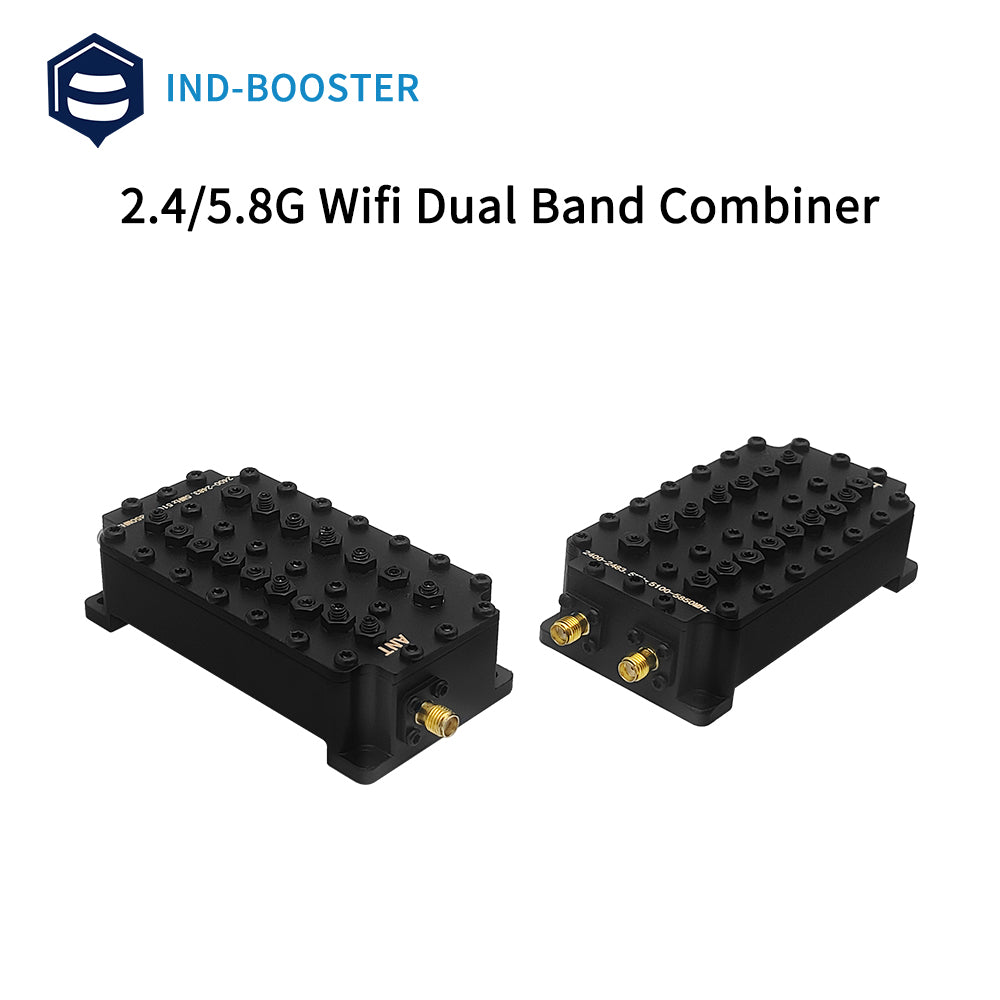

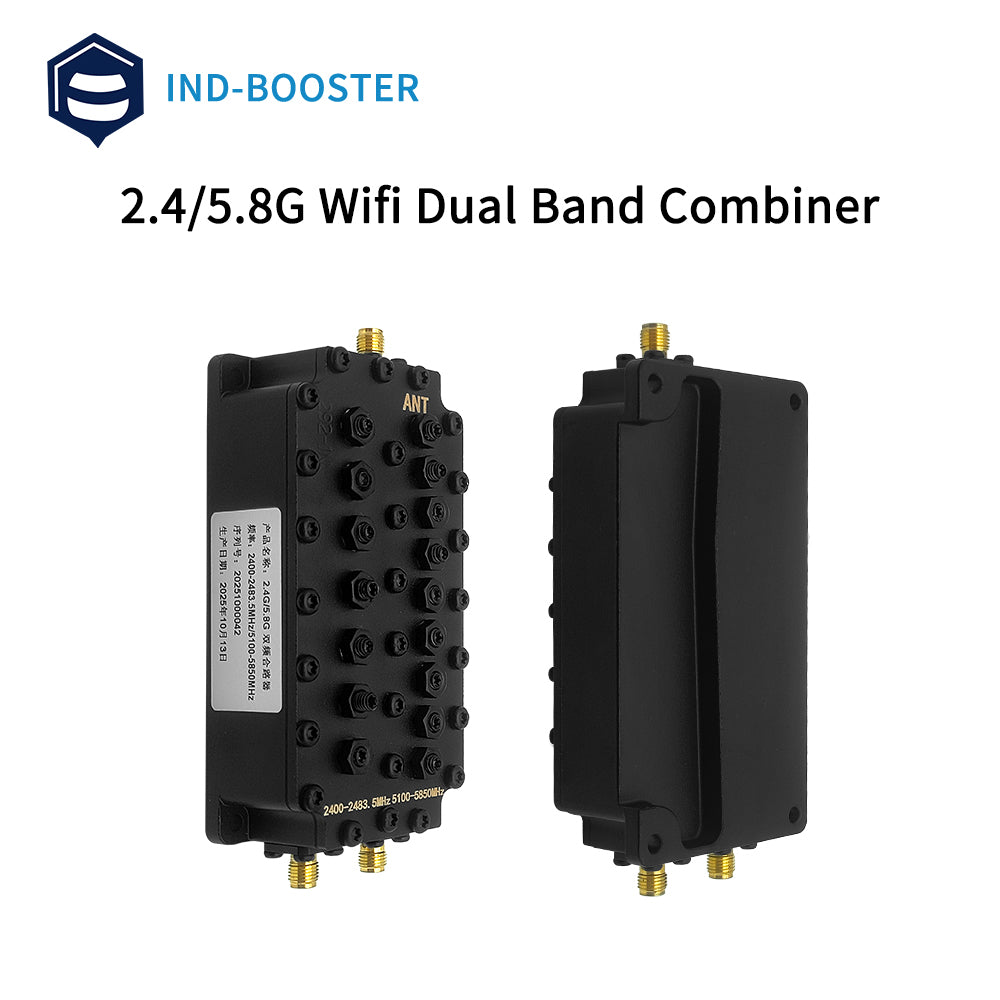

2.4GHz & 5.8GHz dual band signal combiner
Working Band1: 2.4-2.4835GHz
Working Band2: 5.15GHz-5.85GHz
Out of Band Rejection：≥85dB
-
Rugged Aluminum Construction
Ultra Low Insertion Loss (0.3 dB nominal)
Industrial Grade
Reduce Interference and Improve Performance
Type: SMA head
| Item No. | Item Name | Specification |
| 1 | Frequency Range | 2400-2483MHz; 5150-5850MHz |
| 2 | Fluctuation range | ≤0.3dB |
| 3 | Insertion Loss | ≤0.5 |
| 4 | VSWR | <1.25 |
| 5 | Max input power | 100w |
| 6 | Operating Temperature | ‘-40-80°C |

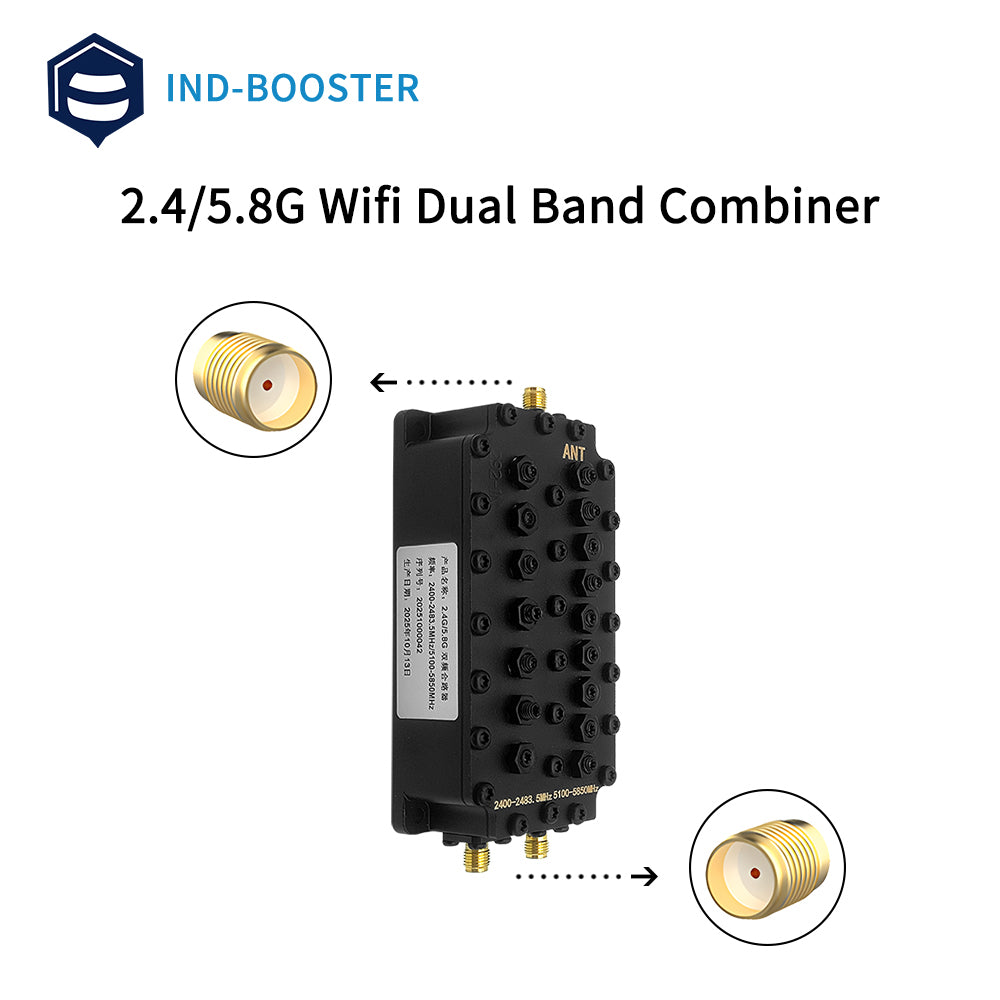

| 7 | Interface | SMA-F |

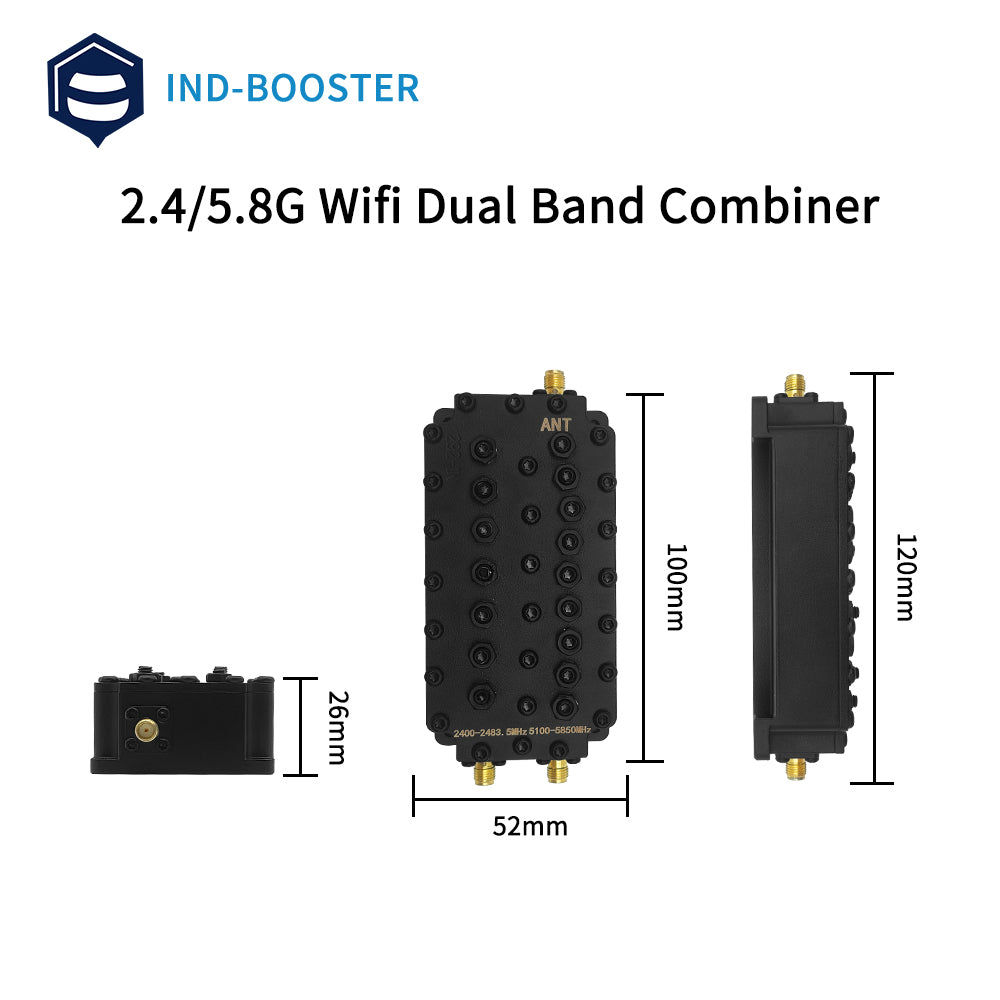

| 8 | Dimensions | 100*52*26mm |
| 9 | Weight | 200g |
| 10 | Surface Finish | Black rust-proof |

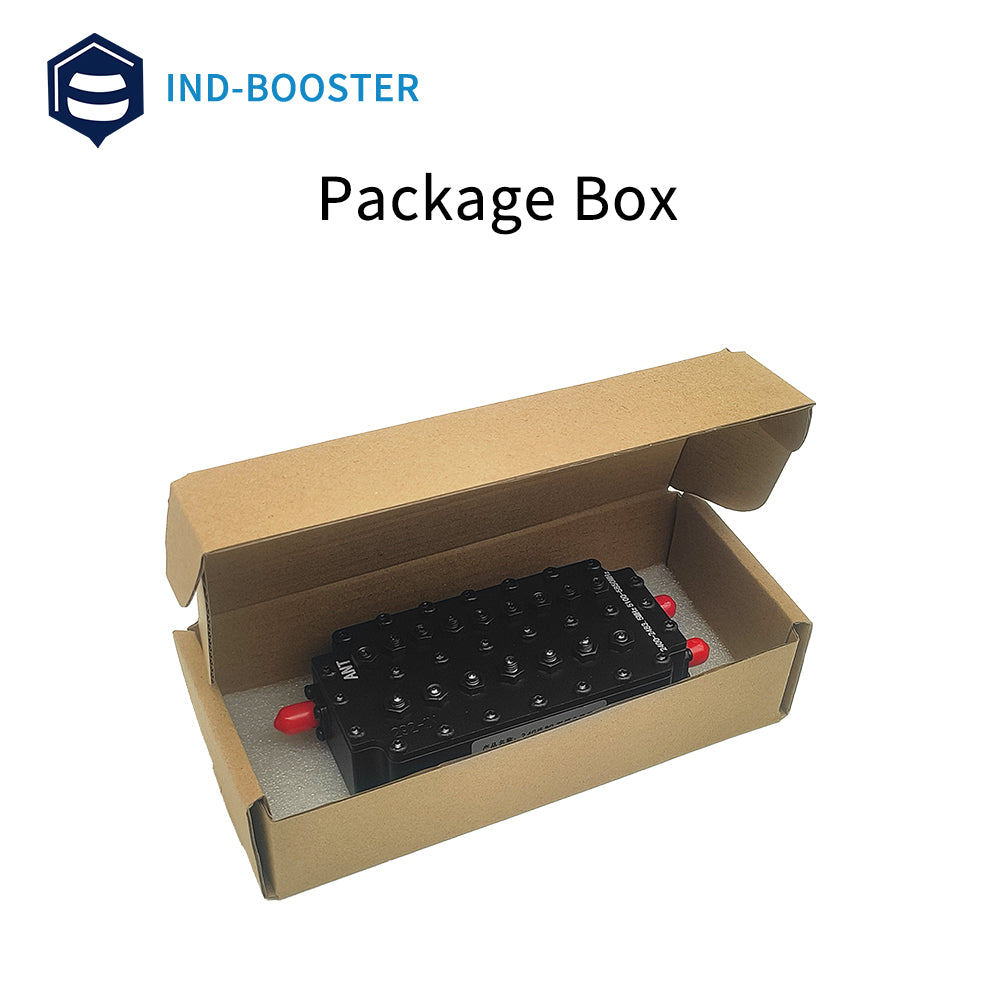

Packaging list
1 Pcs of combiner
