Product Details
xThe IND-Booster Unidirectional Amplifier is a high-performance transmit-only (TX) amplifier featuring a built-in circulator for superior signal stability and efficiency. This amplifier significantly enhances transmission power while maintaining high efficiency and reliability.
With an output power of up to 47dBm (50W) and a high gain of 37dB, this amplifier ensures long-range, high-stability signal transmission, making it an ideal choice for industrial, commercial, and specialized RF applications.
Key Features
✔ High Output Power – Up to 47dBm (50W) for extended transmission range.
✔ High Efficiency – Power efficiency of up to 45%, ensuring optimal performance with reduced power consumption.

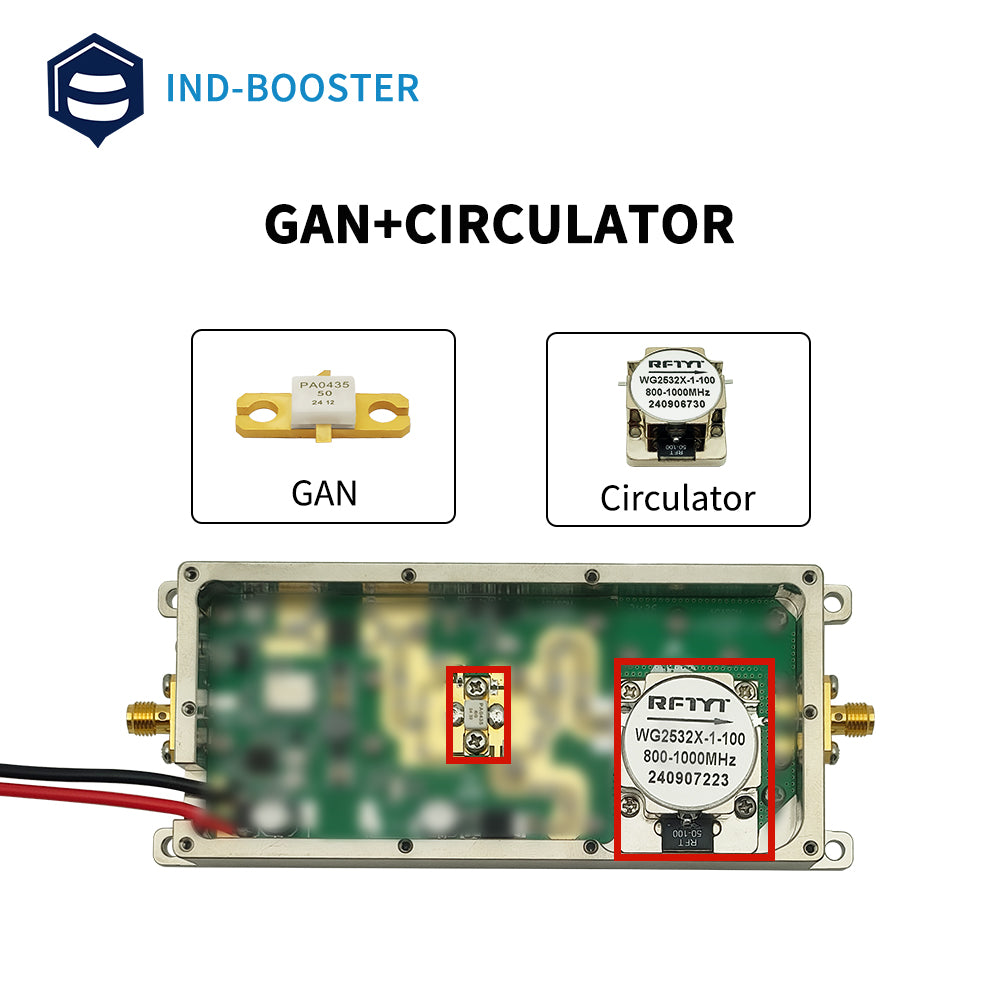

✔ Unidirectional TX Function – Built-in circulator, providing a highly stable signal without RX (receive) functionality.
✔ Robust & Reliable – Designed for continuous operation, even in demanding environments.
✔ Compact & Lightweight – Only 0.25kg, making it easy to integrate into various setups.
✔ Wide Operating Temperature Range – Functions between -30°C to +85°C, ensuring durability in extreme conditions.
Applications
✅ WiFi Signal Boosting – Ideal for extending the range of WiFi networks in large areas.
✅ Bluetooth (BT) Communication – Enhances the transmission power of BT devices for stronger, clearer signals.
✅ Zigbee Connectivity – Optimizes Zigbee networks for IoT and industrial automation.
✅ Industrial & Military Use – Reliable for RF testing, UAV communication, and remote monitoring.
Technical Specifications
|
No. |
Item |
Specification |
|
1 |
Frequency Range |
400-500MHz |
|
2 |
Operating Voltage |
28V |
|
3 |
Gain (S21) |
37dB |
|
4 |
Input Return Loss (S11) |
-15dB |
|
5 |
Flatness |
±0.5dB |
|
6 |
Output Power |
47dBm (50W) |
|
7 |
Current |
3.6A @ 28V, 47dBm |
|
8 |
Efficiency |
45%@47dBm |
|
9 |

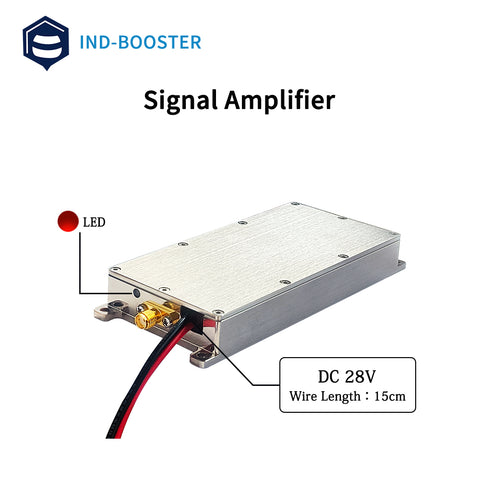

LED Indicator |
Red |
|
10 |
Operating Temperature |
-30℃ ～ +85℃ |
|
11 |
Storage Temperature |
-40℃ ～ +150℃ |
|
12 |
Operating Humidity |
＜95% RH |
|
13 |

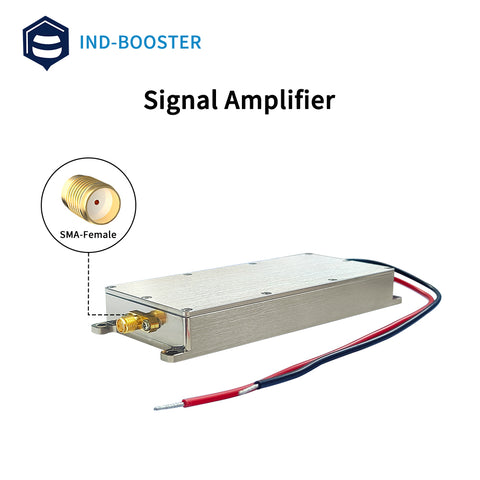

RF Connector |
Input: SMA-F, Output: SMA-F |
|
14 |
Power Socket |
15cm Red/Black Wire |
|
15 |
Shell Material |
Aluminum |
|
16 |

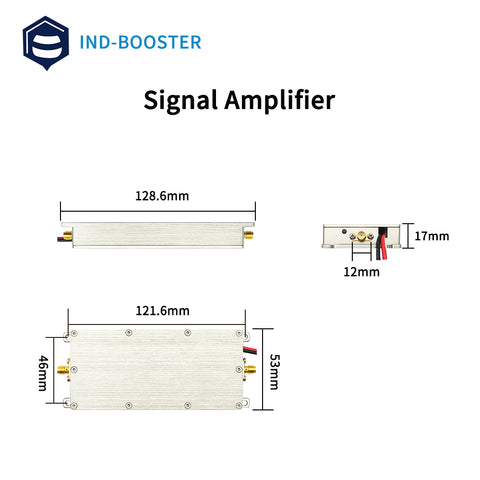

Shell Size |
128 × 53 × 17 mm |
|
17 |
Net Weight |
0.25kg |
Why Choose IND-Booster's Unidirectional Amplifier?
- Optimized for TX-Only Applications – Designed exclusively for transmission, ensuring stable one-way signal amplification
- Long-Distance Transmission – With 46dBm output, significantly extends the range and reliability of wireless communications.
- Stable & Reliable Performance – The built-in circulator ensures consistent high-power output with minimal interference.
- Durable Aluminum Casing – Lightweight, yet rugged enough for industrial and outdoor applications.
- Plug & Play Integration – Compact design with SMA-K RF connectors for seamless integration into existing networks.
Packaging list
- 1 PCS of amplifier
